Product information

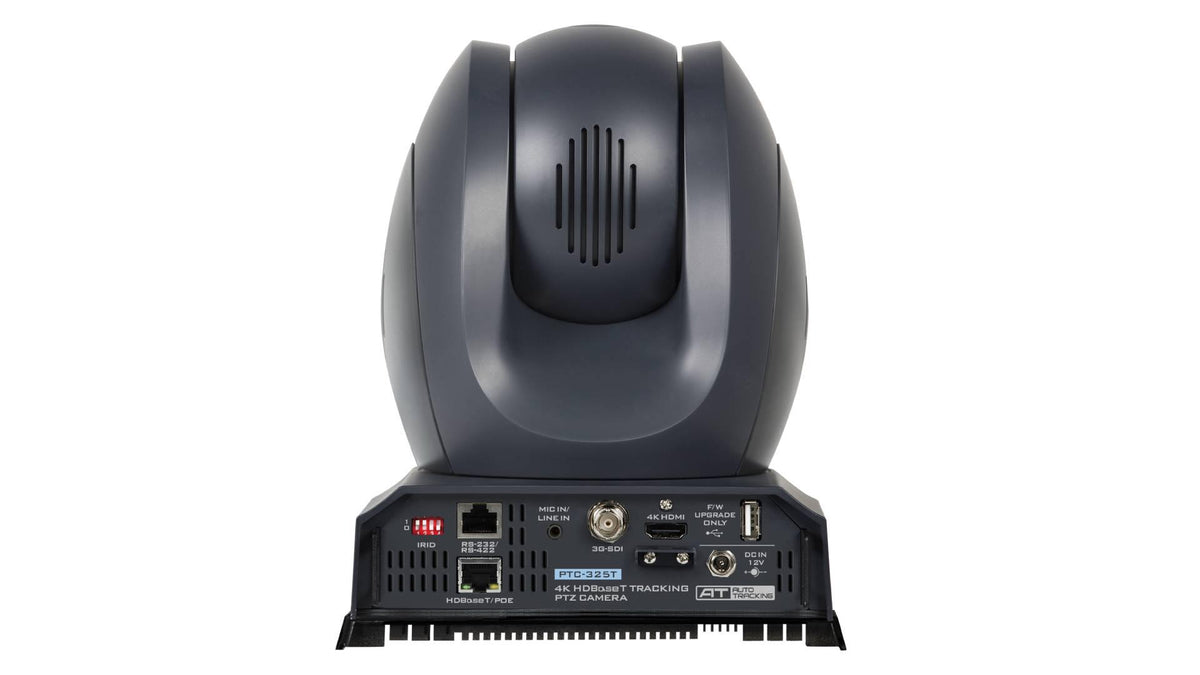

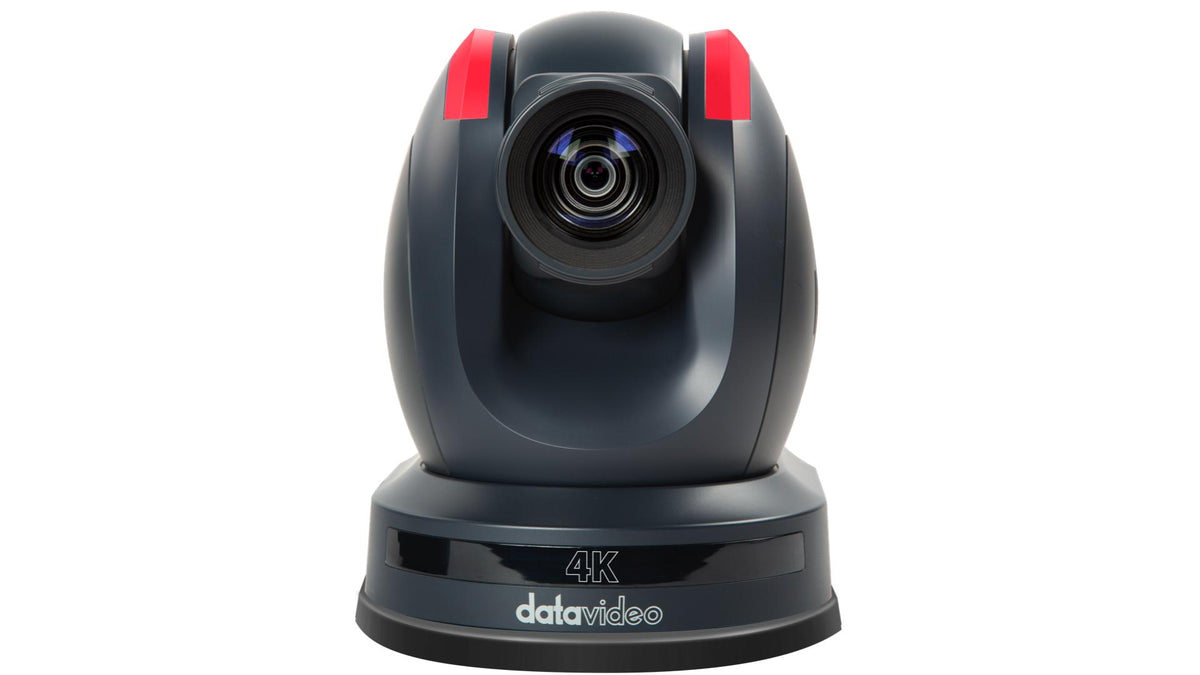

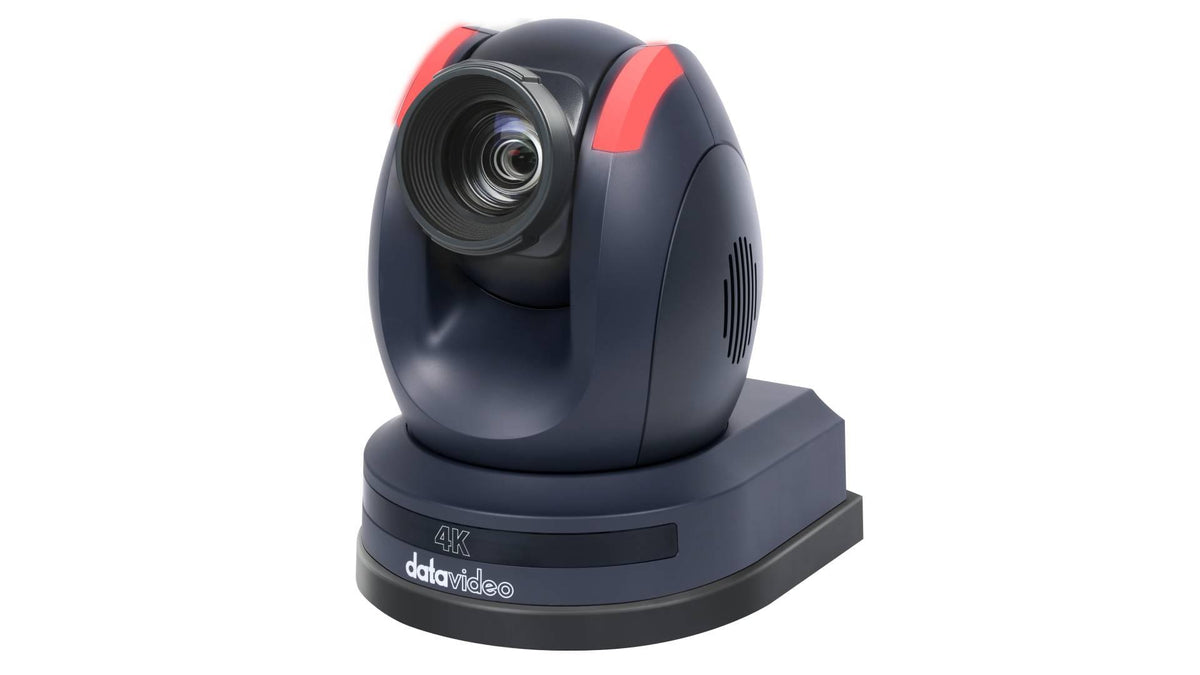

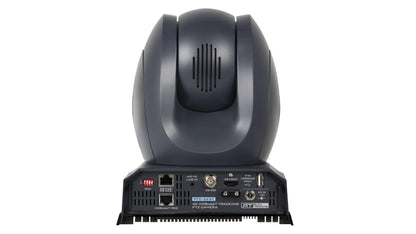

The Datavideo PTC-325T is a hdbaset ptz camera from Datavideo, supplied in India by Universal AV Solutions. PTC-325T 4K 30x HDBaseT Tracking PTZ Camera. 4K Auto Tracking PTZ Camera with HDBaseT.
Key features
- 4K Auto Tracking PTZ Camera with HDBaseT
- Sony 1/2.8" CMOS sensor
- 30x optical zoom
- One Cable Solution (single Ethernet cable)
- Broadcast Quality 4K Resolution
- Multiple Simultaneous Video Outputs
- Low Noise in Low Light
- Custom Auto Tracking
- Smart PTZ Speed Adaptation
- S-Shaped Speed Curve
- Dual stream output
- ONVIF Profile S
Technical specifications
- Model Number: PTC-325T
- Video format/Resolution: HDMI/HDBaseT: 2160p60/59.94/50/30/29.97/25; 1080p60/59.94/50/30/29.97/25; 1080i60/59.94/50; 720p60/59.94/50; *2160p60/59.94/50 YUV 4:2:2. SDI: 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50
- Image Sensor: Sony 1/2.8" CMOS
- Effective Pixels (approx.): 8.46 Mega Pixels
- S/N Ratio: ≥55dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 30x Optical, 16x Digital Zoom
- Effective Zoom Ratio: 30x
- Gamma Control: N/A
- Iris Control: Auto / Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
- AGC / Gain Control: Yes
- HDR/WDR: N/A
- Mirror / Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning / Tilting Range: Pan: 300°; Tilt: +90° to -15°
- Panning / Tilting Speed: Pan: 0.876°/s~43°/s; Tilt: 0.693°/s ~21.32°/s
- Preset: 255 Positions
- Focal Length: 30x, f = 4.5mm ~135mm, F1.8 ~ F4.7
- Field of View (Horizontal, Wide): 62.3°
- Image Compensation: Back light compensation
- Video Output: HDMI 2.0 x1; 3G-SDI x1; HDBaseT (PoE) x 1
What's in the box (per official Datavideo page)
- 1 x PTC-325T product
- 1 x RMC-1AT IR remote controller
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Safety cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
