Product information

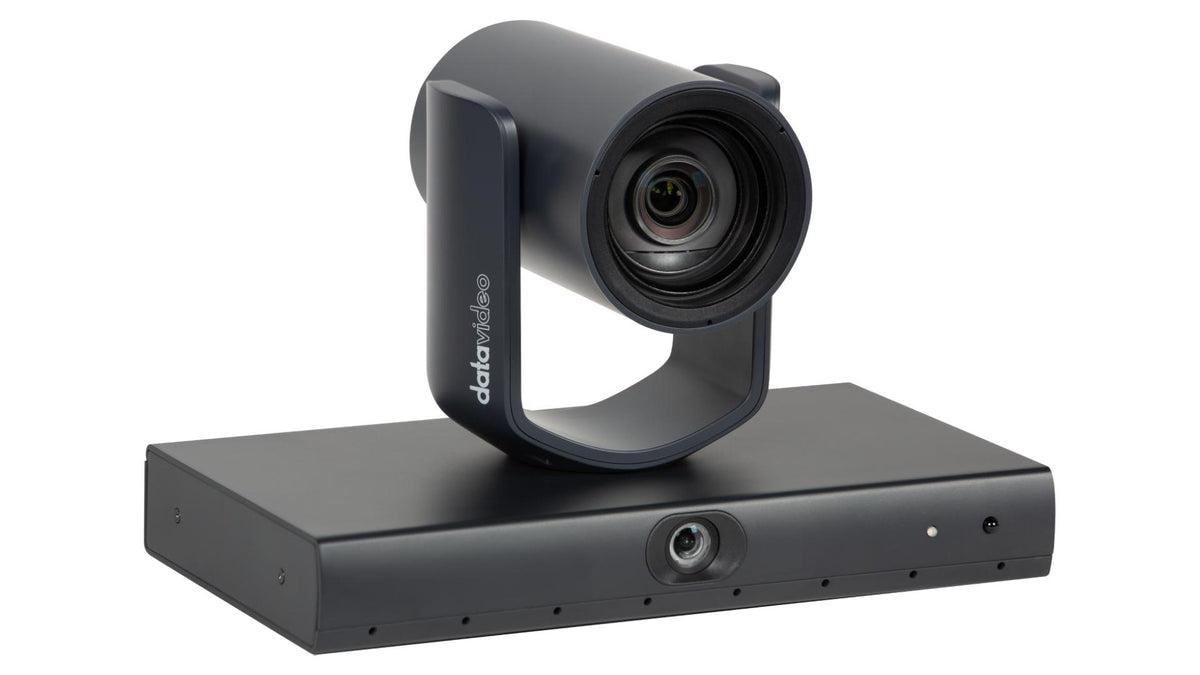

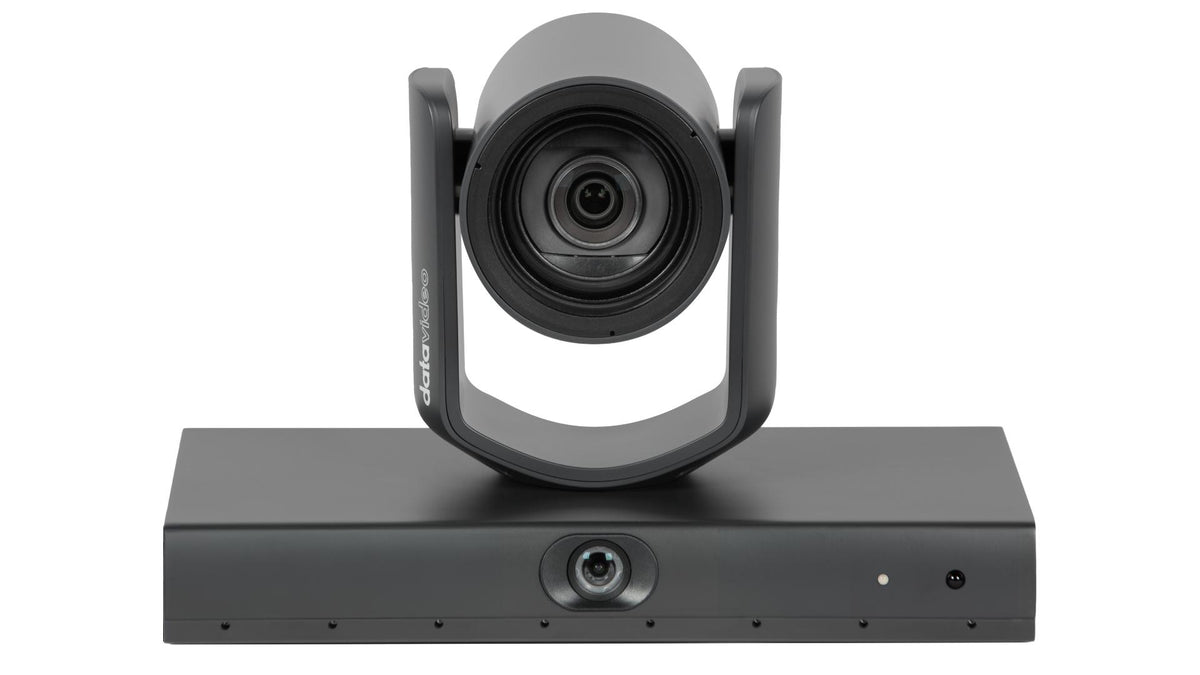

The Datavideo VTC-100 is a voice tracking ptz camera from Datavideo, supplied in India by Universal AV Solutions. VTC-100 12x Dual Lens Voice Tracking PTZ Camera. AI Auto-Tracking: dual-lens system for subject tracking.
Key features
- AI Auto-Tracking: dual-lens system for subject tracking
- Speaker Tracking: detects the active speaker's voice direction and switches focus to that person
- Auto-Framing: counts people in the scene and keeps them centered
- Presenter Tracking: follows a designated individual
- Zone Tracking: uses defined zones to trigger or restrict tracking
- 1/2.8" CMOS sensor, Full HD at 60fps
- 12X optical zoom
- 8-microphone array for voice direction detection
- SDI, HDMI, UVC and NDI|HX3 connectivity
- Built-in H.264, H.265 and Motion JPEG encoding for two streaming platforms
- RTSP, RTMP(S), SRT, NDI|HX3 streaming; VISCA, DVIP, ONVIF control
- Power over Ethernet (single CAT6 cable)
Technical specifications
- Video format: 1080p60/59.94/50/30/29.97/25; 720p60/59.94/50
- Sensor: Sony 1/2.8" CMOS, 2.14 MP effective pixels
- S/N ratio: >=45dB
- Min. illumination: 0.5 Lux (F1.6, AGC ON)
- Zoom: 12X optical, 16x digital
- Focal length: f=4.1mm (wide) to 49.2mm (tele); F1.6 to F2.8
- Horizontal FOV (wide): Main 70.2 deg; Panorama 110 deg
- Pan +/-130 deg; Tilt +90 to -30 deg
- Pan speed 0.2-90 deg/s; Tilt speed 0.2-60 deg/s
- 254 presets
- WDR; 2D/3D digital noise reduction

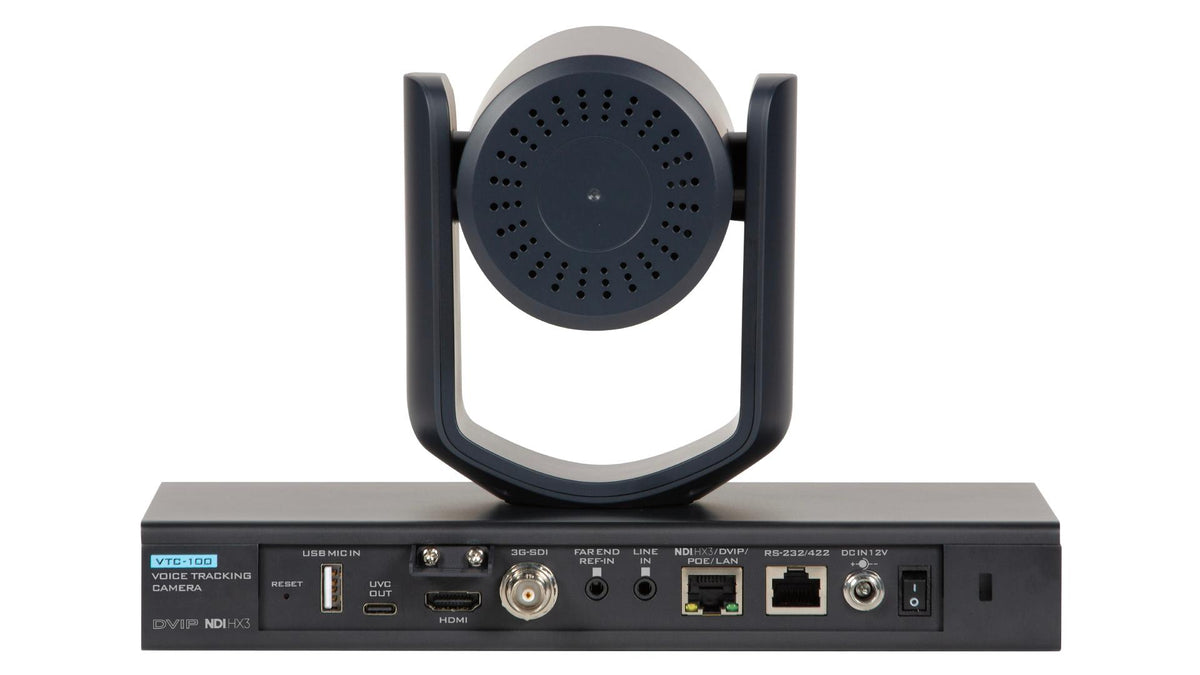

- Video output: HDMI 1.4b x1; 3G-SDI x1; UVC x1; 10/100M RJ45 (PoE) x1
- Audio input: 3.5mm Line In x1; USB-A (Mic in) x1
- Control protocols: Pelco-D, Pelco-P, VISCA, VISCA over IP, NDI, DVIP, ONVIF
- Control interfaces: IR, Web UI, RS-422/RS-232 (RJ-45), DVIP, NDI
- Video compression: H.264/H.265/MJPEG (UVC only); audio: AAC, PCM (UAC), G711 (ONVIF)
- Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|HX3
- PoE: IEEE 802.3at (PoE+)
- Tripod mount: 1/4-20 UNC
- Dimensions (LxWxH): 245 x 154 x 164 mm; weight 2 kg
- Operating temperature: 0-40 C
- Power: DC 12V 2A (18W)
- Color: Black
What's in the box (per official Datavideo page)
- 1 x VTC-100 product
- 1 x IR remote controller
- 1 x Power cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
