Product information

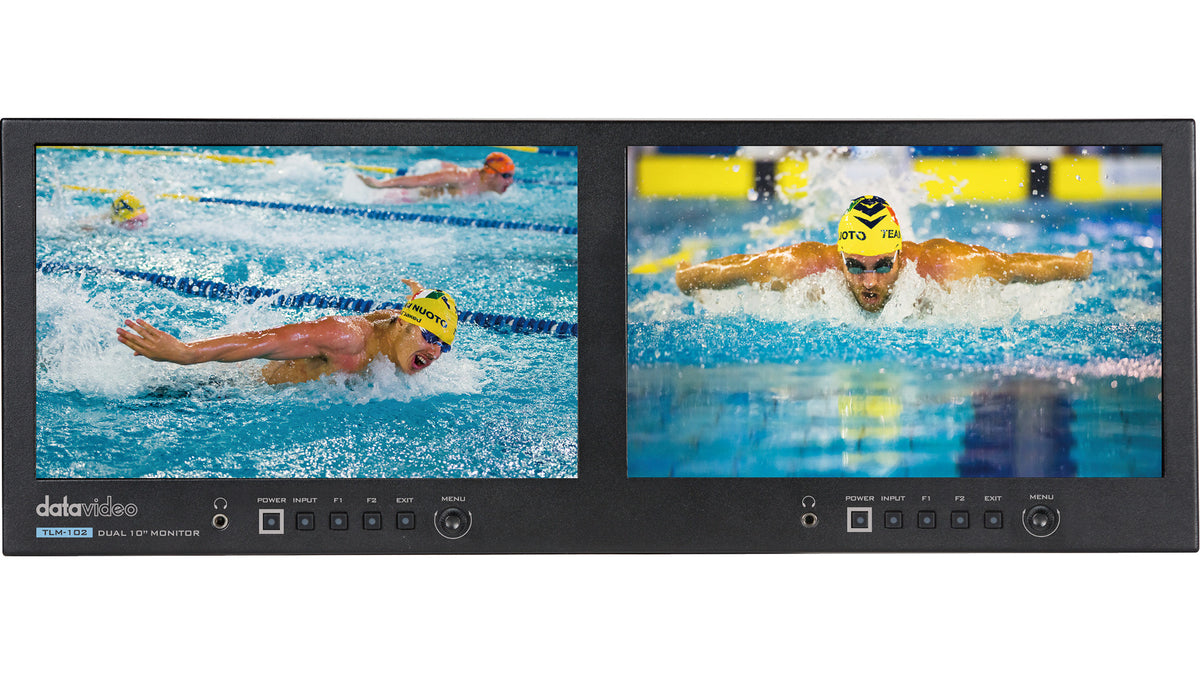

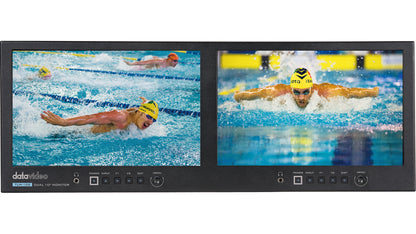

The Datavideo TLM-102 is a broadcast monitor from Datavideo, supplied in India by Universal AV Solutions. TLM-102 Dual 10.1" FHD SDI/HDMI Cross Conversion Monitor. Supports 3G/HD/SD 1280x800 panel resolution.
Key features
- Supports 3G/HD/SD 1280x800 panel resolution
- 1 x 3G/HD/SD-SDI, 1 x HDMI input and loop out
- SDI, HDMI cross conversion
- Built-in functions: Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field

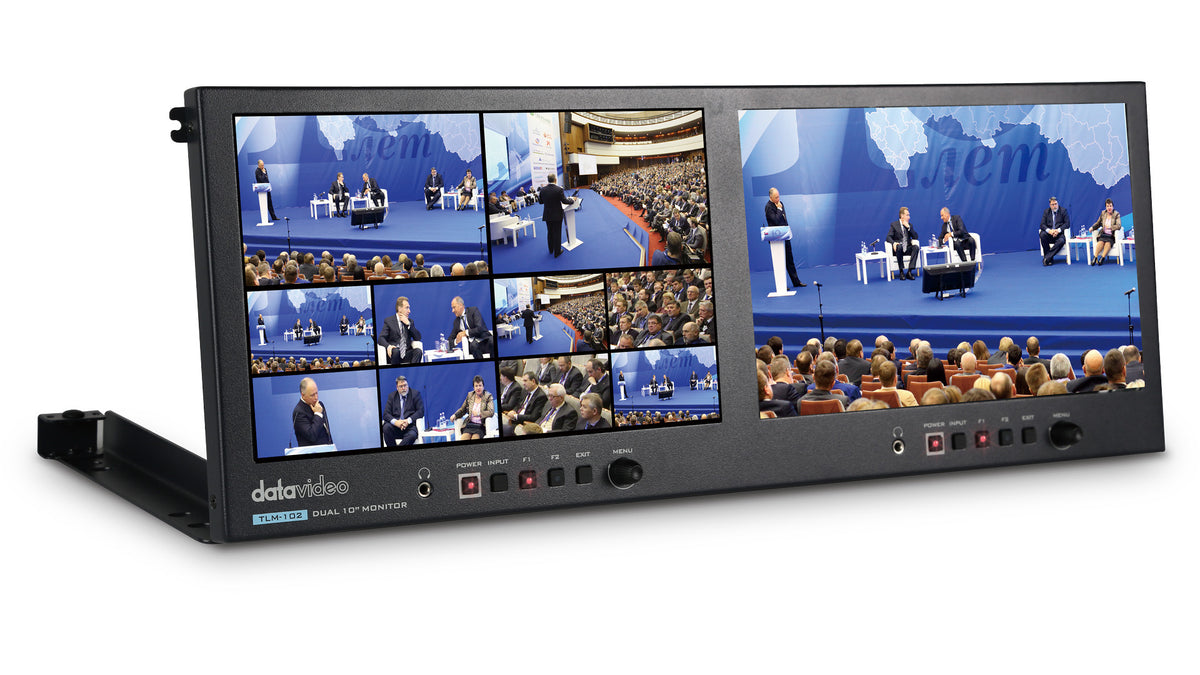

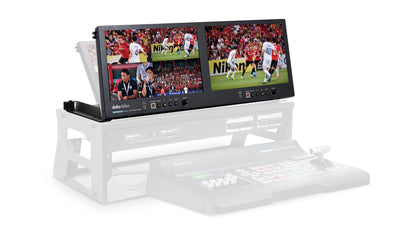

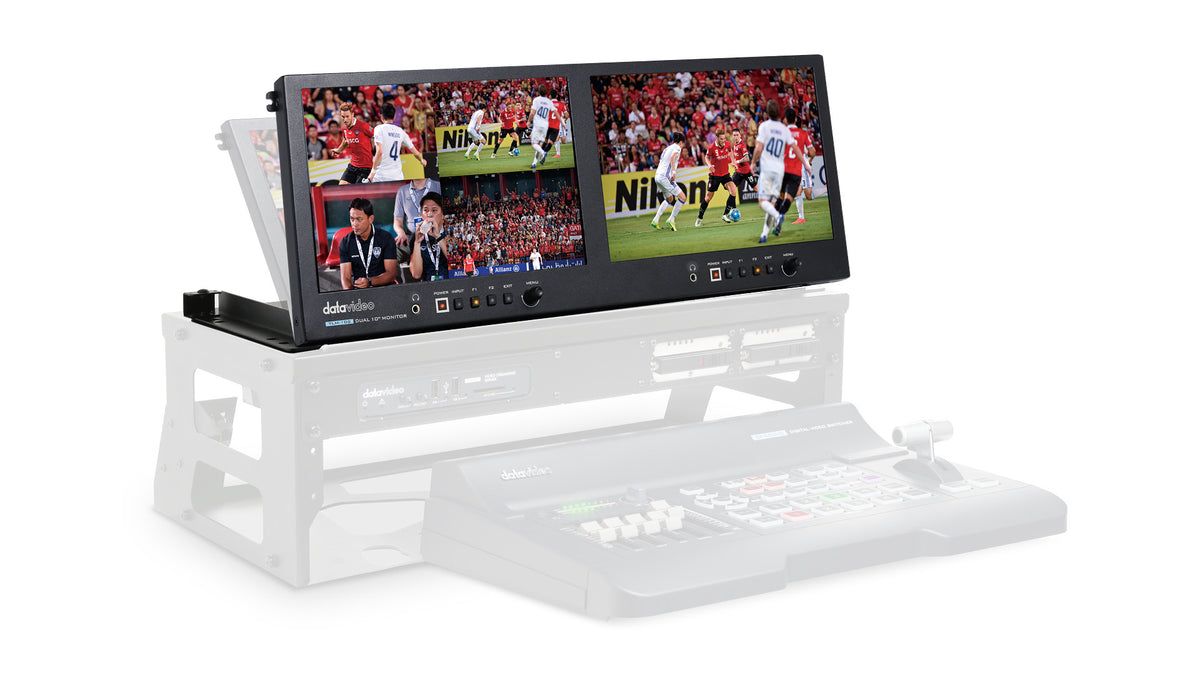

- 90-degree angle adjustment design for rack mounting or desk placement
Technical specifications
- Screen: Dual 10.1" LCD
- Chassis: 4RU Rack Mount
- Resolution: 1280x800
- Viewing Angle: (H) +85/-85 deg, (V) +85/-85 deg
- Luminance/Contrast: 300cd/m2, 800:1
- Video Inputs: 2x 3G/HD/SD-SDI, 2x HDMI
- Loop Through: 2x 3G/HD/SD-SDI, 2x HDMI
- Supported Input Resolutions: 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i(50/59.94/60Hz), 720p(23.98/24/25/29.97/30/50/59.94/60Hz), 480i(NTSC), 576i(PAL)
- Aspect Ratio: 16:9, 4:3
- Aspect Marker: YES
- Safety Marker: YES
- Tally LED: Live (Red), Cued (Green)
- Audio In/Out: Embedded Audio on SDI and HDMI, Headphone Jack
- Special Features: time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversion
- Dimension (WxHxD): 482 x 178 x 38 mm
- Weight: 3.6 kg
- Operating Temp. Range: 0~40 C
- Power: DC 12V, 28W
What's in the box (per official Datavideo page)
- 1 x TLM-102 product
- 1 x AD Switch DC 12V with AC Cord
- 1 x Tally Convertor
- 2 x Screw phi3.0*6m/m
- 4 x Screw M5 x 10mm
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
