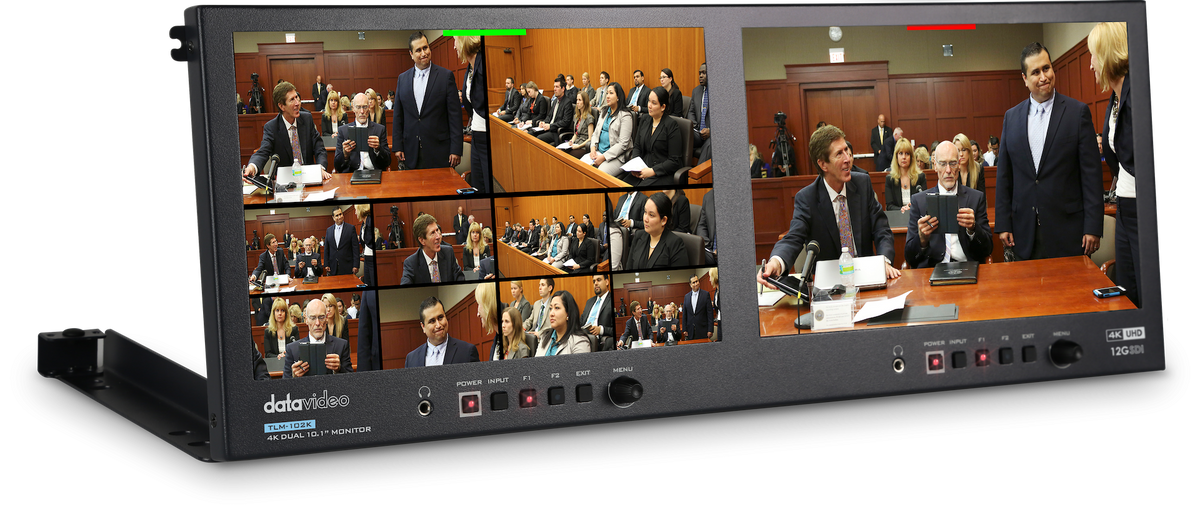

The Datavideo TLM-102K is a broadcast monitor from Datavideo, supplied in India by Universal AV Solutions. TLM-102K Dual 10.1" 12G-SDI/4K-HDMI Monitor. 4K Dual 10.1" Monitors: two independent 10.1-inch displays within a 4RU rack design.
Key features
- 4K Dual 10.1" Monitors: two independent 10.1-inch displays within a 4RU rack design
- Multiple Input/Output Options: 12G-SDI and HDMI 2.0 inputs and loop-through outputs
- Advanced Monitoring Tools: time code, audio level meters, zoom, and pixel-to-pixel functions
- Customizable Display Controls: brightness, contrast, color saturation, and LED backlight level adjustable for each monitor
Technical specifications
- Screen: Dual 10.1" LCD
- Chassis: 4RU Rack Mount
- Resolution: 1920 x 1200
- Viewing Angle: (H) +85/-85 deg, (V) +85/-85 deg
- Luminance/Contrast: 1000cd/m2, 1000:1

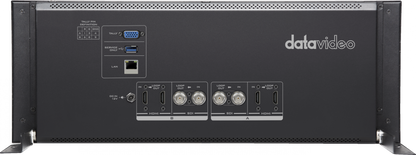

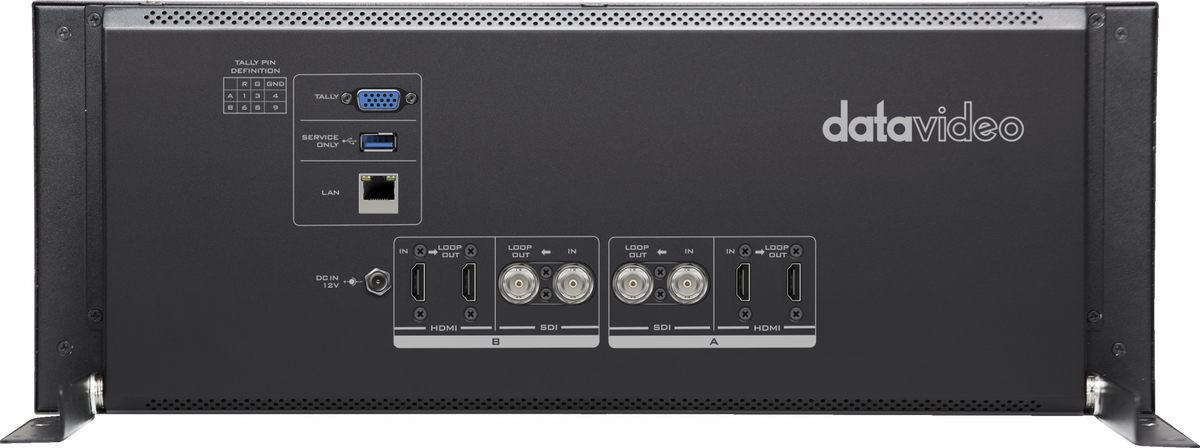

- Video Inputs: 2x 12G-SDI, 2x HDMI (2.0)
- Loop Through: 2x 12G-SDI, 2x HDMI (2.0)
- Supported Input Resolutions - HDMI: 4K60/59.94/50/30/29.97/25/24/23.98; 1080P60/59.94/50/30/29.97/25/24/23.98; 1080i60/59.94/50, 720p60/59.94/50; 480p, 576p. SDI: 4K60/59.94/50/30/29.97/25/24/23.98; 1080P60/59.94/50/30/29.97/25/24/23.98; 1080i60/59.94/50, 720p60/59.94/50; 525i59.94 NTSC, 625i50 PAL
- Aspect Ratio: 16:9, 4:3
- Aspect Marker: YES
- Safety Marker: YES
- Tally LED: Live (Red), Cued (Green)
- Audio In/Out: Embedded Audio (48KHz sampling), Analog stereo (Phone Jack)
- Special Features: HDR, time code, audio level meter, peaking, zoom, pix to pix, underscan
- Dimension (WxHxD): 482 x 178 x 38 mm
- Weight: 3.6 kg
- Operating Temp. Range: 0~40 C
- Power: DC 12V, 28W
What's in the box (per official Datavideo page)
- 1 x TLM-102K product
- 1 x AD Switch DC 12V with AC Cord
- 1 x Tally Convertor
- 2 x Screw phi3.0*6m/m
- 4 x Screw M5 x 10mm
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
