Product information

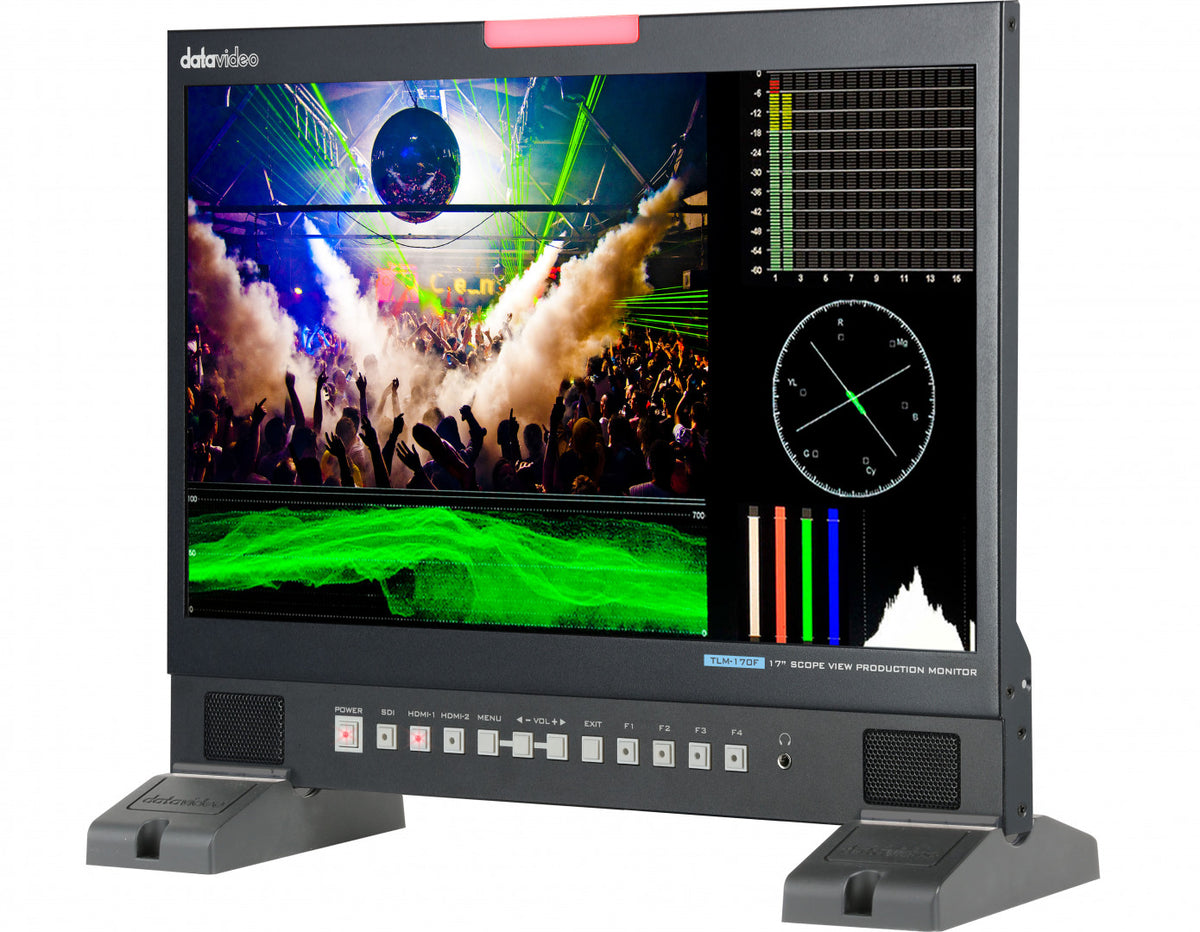

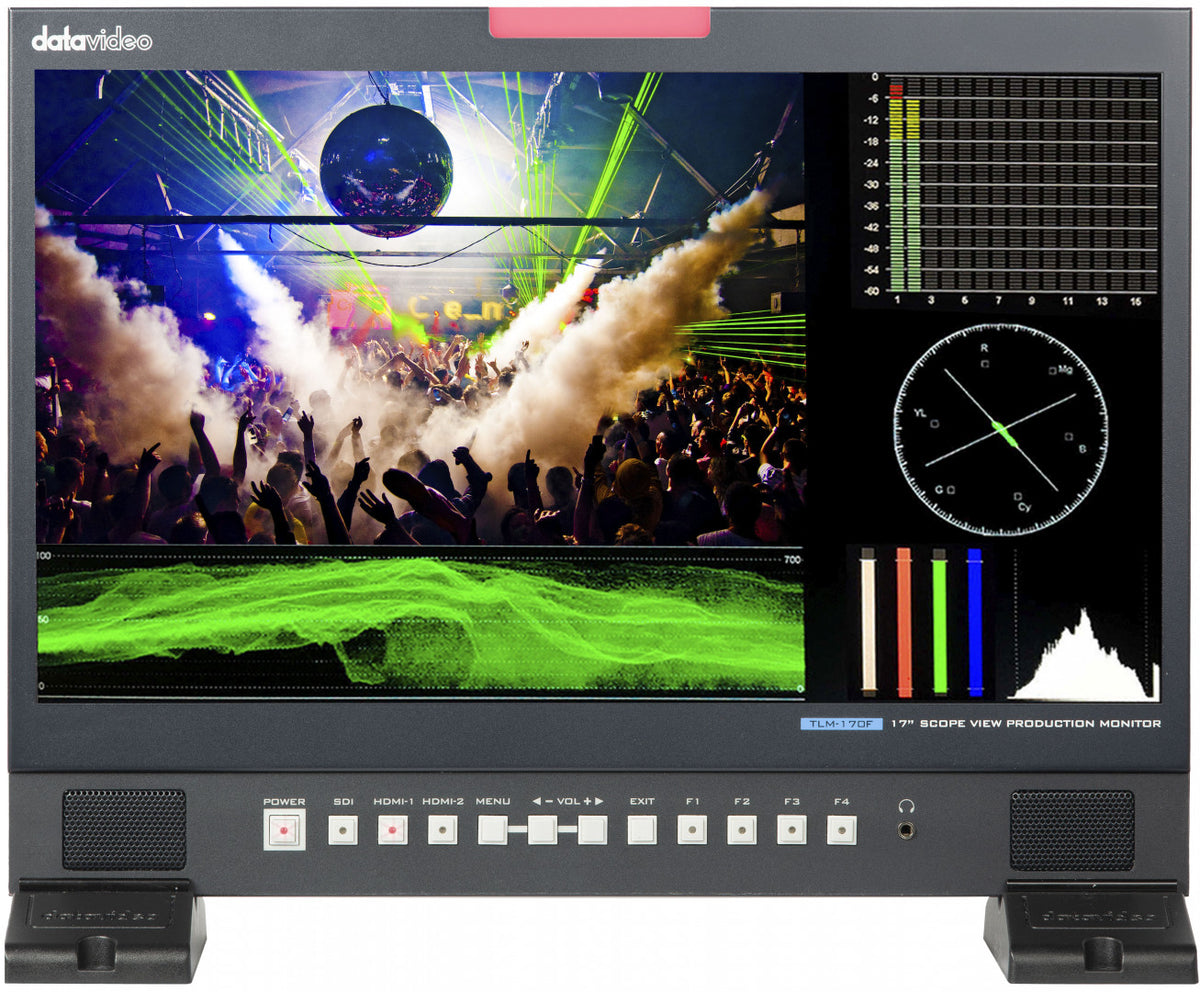

The Datavideo TLM-170F is a broadcast monitor from Datavideo, supplied in India by Universal AV Solutions. TLM-170F 17.3" ScopeView Monitor (Desktop). 17.3-inch desktop LCD monitor with Full HD 1920x1080 panel.
Key features
- 17.3-inch desktop LCD monitor with Full HD 1920x1080 panel
- 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals
- 178-degree viewing angle, 300 cd/m2 brightness, 700:1 contrast ratio
- Built-in monitoring tools: waveform, vector scope, focus peaking, false color, histogram, zoom, screen markers, image flip, and others
- HDR support for HLG and SMPTE 2084
- Color space presets for Rec 709 and DCI P3
- Tally light included

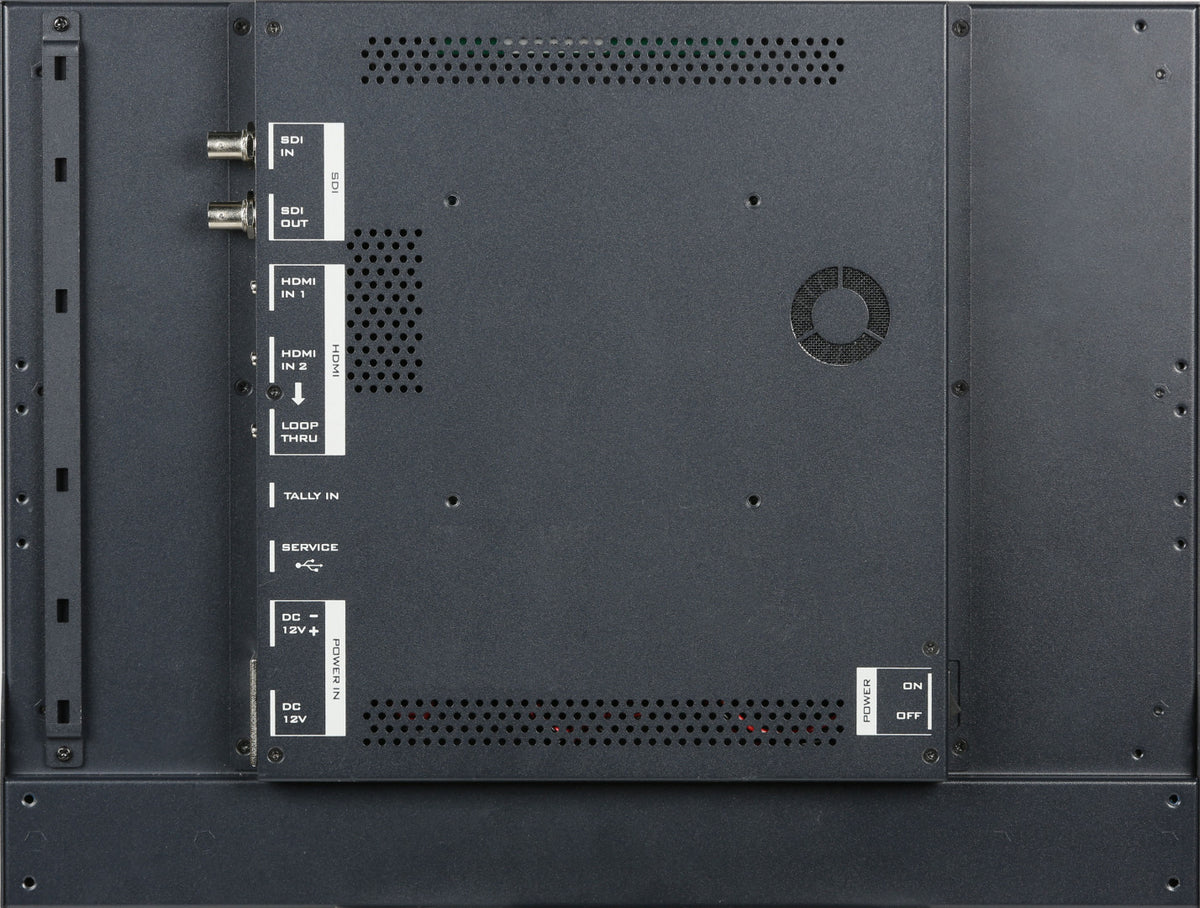

- Inputs: 1 x 12G-SDI, 2 x HDMI (2.0)
- Loop-through: 1 x 12G-SDI, 1 x HDMI (2.0)
Technical specifications
- Screen: 17.3" LED Backlit
- Chassis: Tabletop
- Resolution: 1920x1080
- Viewing Angle: (H) +89/-89 deg, (V) +89/-89 deg
- Luminance/Contrast: 300cd/m2, 700:1
- Video Inputs: 1 x 12G SDI, 2 x HDMI (2.0)
- Loop Through: 1 x 12G SDI, 1 x HDMI (2.0)
- Supported Input Resolutions (SDI): 4096x2160p, 3840x2160p (23.98/24/25/29.97/30/50/59.94/60); 4096x2160PsF, 3840x2160PsF (23.98/24/25/29.97/30); 1920x1080p (23.98/24/25/29.97/30/50/59.94/60); 1920x1080i (50/59.94/60); 1920x1080PsF (23.98/24/25/29.97/30); 1280x720p (23.98/24/25/29.97/30/50/59.94/60); 525i, 625i
- Supported Input Resolutions (HDMI): 4096x2160p, 3840x2160p (23.98/24/25/29.97/30/50/59.94/60); 1920x1080p (23.98/24/25/29.97/30/50/59.94/60); 1920x1080i (50/59.94/60); 1280x720p (23.98/24/25/29.97/30/50/59.94/60); 720x480i (NTSC), 720x576i (PAL); 640x800, 800x600, 1024x768, 1280x800
- Aspect Ratio: 16:9, 4:3
- Aspect Marker: YES
- Safety Marker: YES
- Tally LED: Live (Red), Cued (Green)
- Audio In/Out: Input: Embedded Audio (48kHz sampling); Output: Analog stereo (Phone Jack); Speaker x 2 (3W)
- Special Features: Waveform, vector scope, Focus Peaking, False Color, Exposure (Zebras), Histogram, HDR/SDR, Time Code, Audio Vector, Camera Log, Gamma, Marker, Pixel to Pixel, Zoom, H/V Delay, DSLR, Freeze, Image Flip, Check Field, Level Meter, Color Bar, Color Calibration
- Dimension (WxHxD): 403 x 305 x 37 mm
- Weight: 4.7kg
- Operating Temp. Range: 0~40 C
- Power: DC 12V, 34.6W
What's in the box (per official Datavideo page)
- 1 x TLM-170F product
- 1 x AD Switch DC 12V
- 1 x Monitor Stand
- 2 x Velcro
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
