Product information

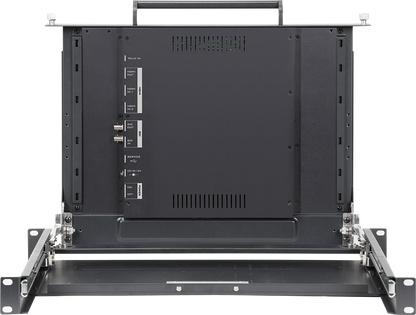

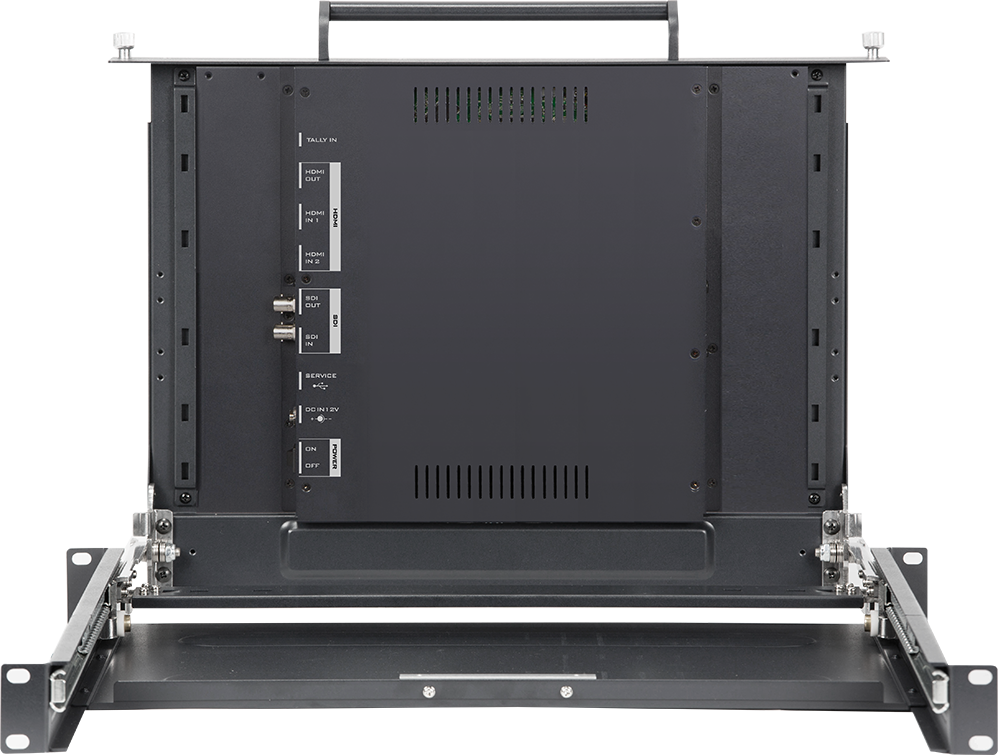

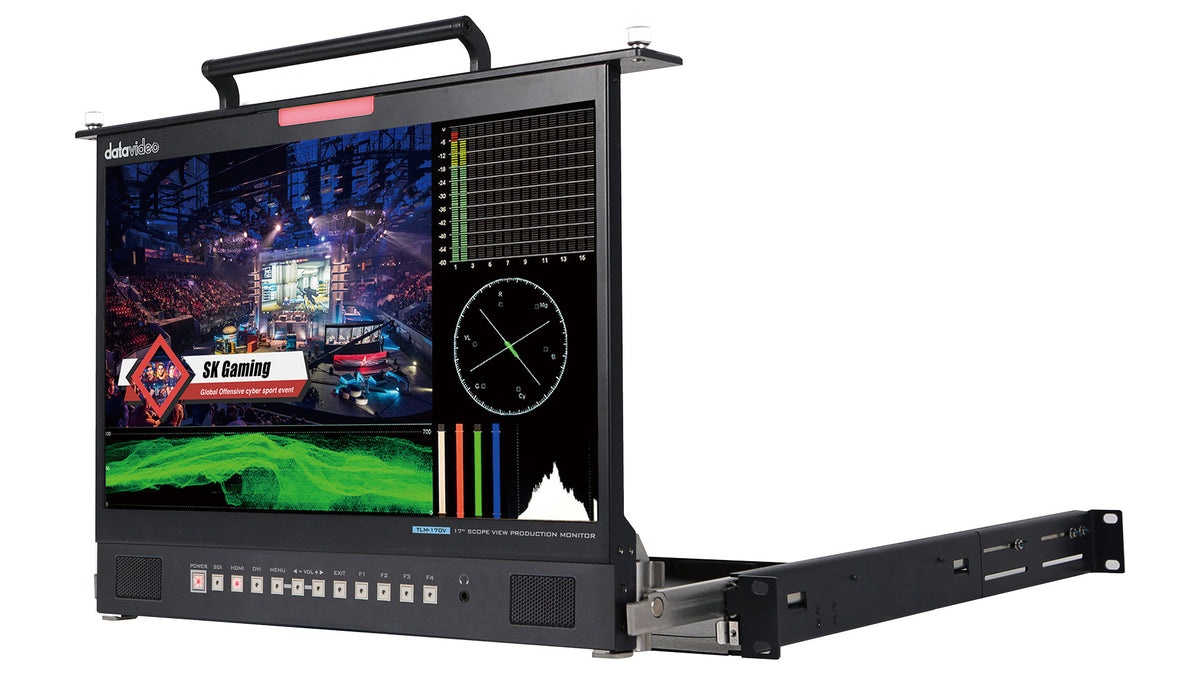

The Datavideo TLM-170VM is a broadcast monitor from Datavideo, supplied in India by Universal AV Solutions. TLM-170VM 17.3" ScopeView Production Monitor (1U Pull-Out). 17.3'' Full HD Pull-Out Monitor; supports 3G/HD/SD 1920x1080 panel resolution.
Key features
- 17.3'' Full HD Pull-Out Monitor; supports 3G/HD/SD 1920x1080 panel resolution
- Multiple input and output configurations: 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
- SDI, HDMI cross conversion
- Various built-in functions: column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field
- Tally light included
Technical specifications
- Screen: 17.3" LED Backlit
- Chassis: 1RU Pull-Out
- Resolution: 1920x1080
- Viewing Angle: (H) +89/-89 deg; (V) +89/-89 deg
- Luminance/Contrast: 300cd/m2; 700:1
- Video Inputs: 1x 3G/HD/SD-SDI; 2x HDMI
- Loop Through: 1x 3G/HD/SD-SDI
- Supported Input Resolutions: 1080p(23.98/24/25/29.97/30/50/59.95/60Hz); 1080i(50/59.94/60Hz); 720p(50/59.94/60Hz); 576i(PAL); 480i(NTSC)
- Aspect Ratio: 16:9, 4:3
- Aspect Marker: YES
- Safety Marker: YES
- Tally LED: Live (Red); Cued (Green)
- Audio In/Out: 2x Speaker; 1x Headphone Jack
- Special Features: SDI and HDMI cross conversion, Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field
- Dimension (WxHxD): 485.8 x 492.7 x 44.5mm
- Weight: 6.7 kg
- Operating Temp. Range: 0~40 C
- Power: DC 12V, 21.9W
What's in the box (per official Datavideo page)
- 1 x TLM-170V product
- 1 x AD Switch DC 12V
- 4 x Screw phi4.0*6m/m
- 8 x Screw phi3.0*6m/m
- 8 x Screw M5 x 10mm
- 5 x Cable tie
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
