Product information

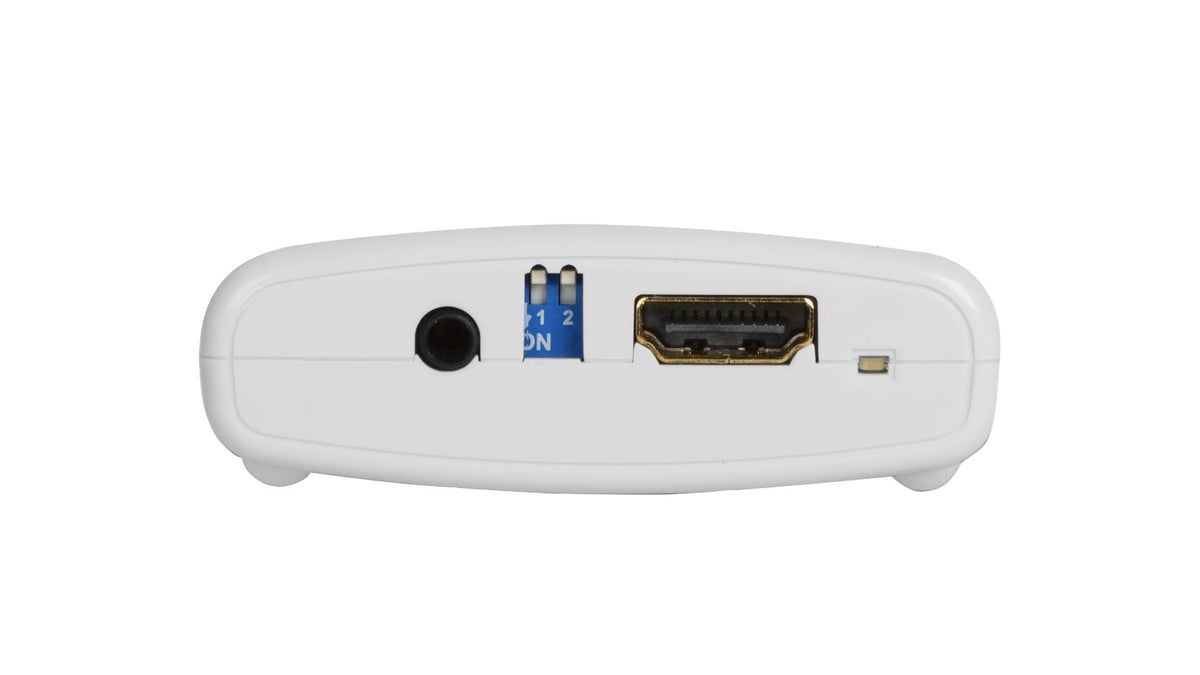

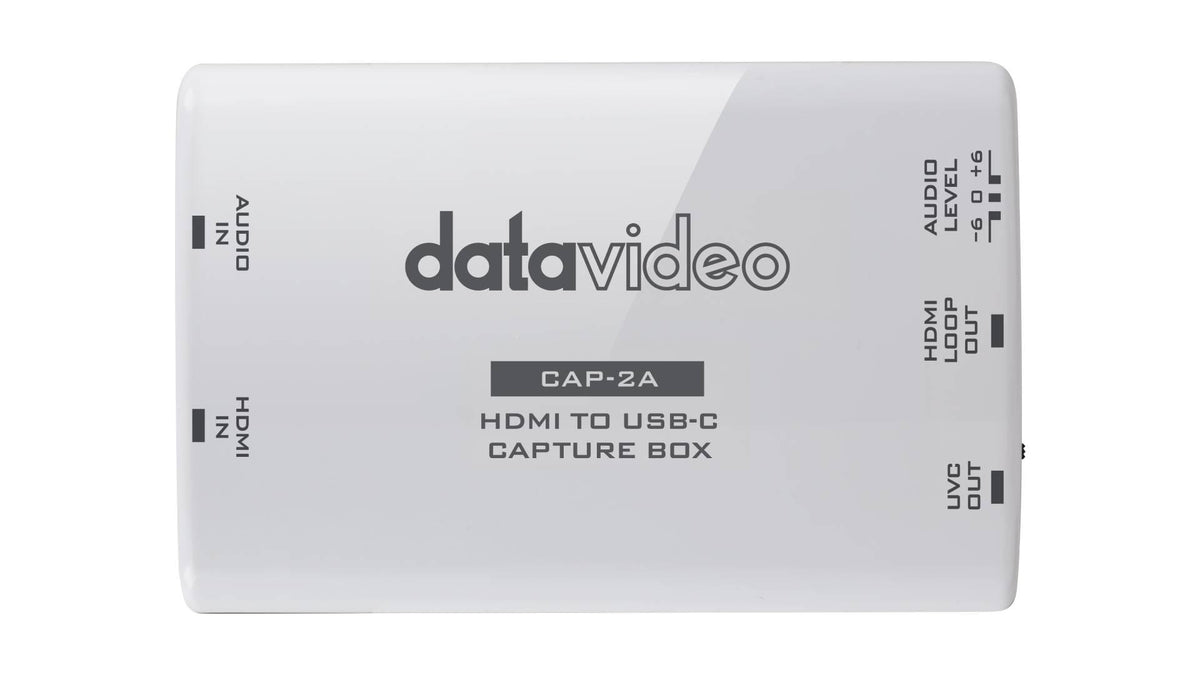

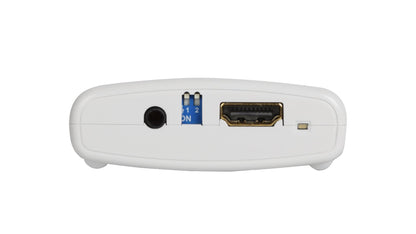

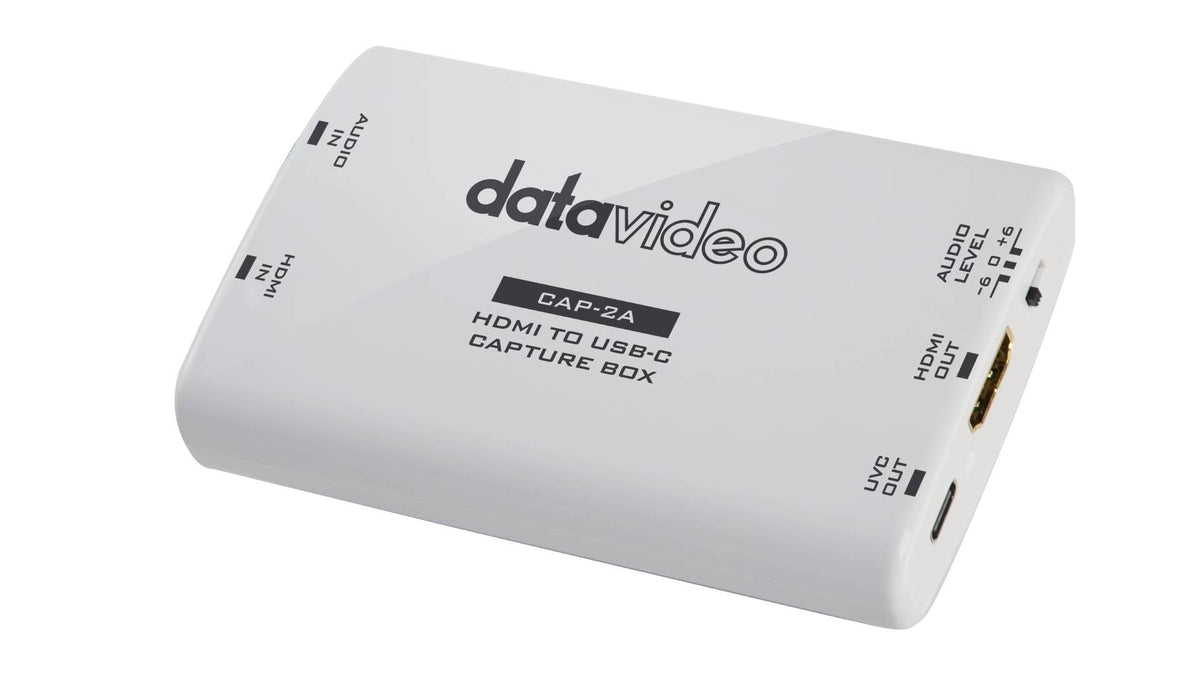

The Datavideo CAP-2A is a converter from Datavideo, supplied in India by Universal AV Solutions. CAP-2A HDMI to USB-C Capture Box. 4K HDMI capture for live streaming, video production and content creation.
Key features
- 4K HDMI capture for live streaming, video production and content creation
- Supports up to 4K 30p and HD 120p
- High-speed USB-C 3.2 interface
- Plug-and-play setup
- Mixes HDMI-embedded and external audio
- Stereo line-in external audio
- UVC support with video format auto-detection
- Software compatibility listed for Windows, macOS and Linux
Technical specifications
- Model: CAP-2A
- Input: 1x HDMI; Output: 1x USB 3.2 (Type-C), 1x HDMI loop through
- Input video bandwidth: up to TMDS (18G); USB-C output bandwidth up to 5 Gbps
- Audio input: HDMI embedded (2-channel), 3.5mm stereo line input
- Audio format: 16/24-bit, 44.1 kHz and 48 kHz; output up to 24-bit PCM, fixed 48 kHz (UVC)
- Firmware update and power via USB port; under 4.5W
- Operating 0~40C; storage -20~60C; humidity 20~90% RH
- OS: Windows 10 x64 or above, macOS High Sierra 10.13 or above, Linux
- 105 x 68 x 23 mm; 75g
What's in the box (per official Datavideo page)
- 1 x CAP-2A
- 1 x USB 3.0 Cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
