Product information

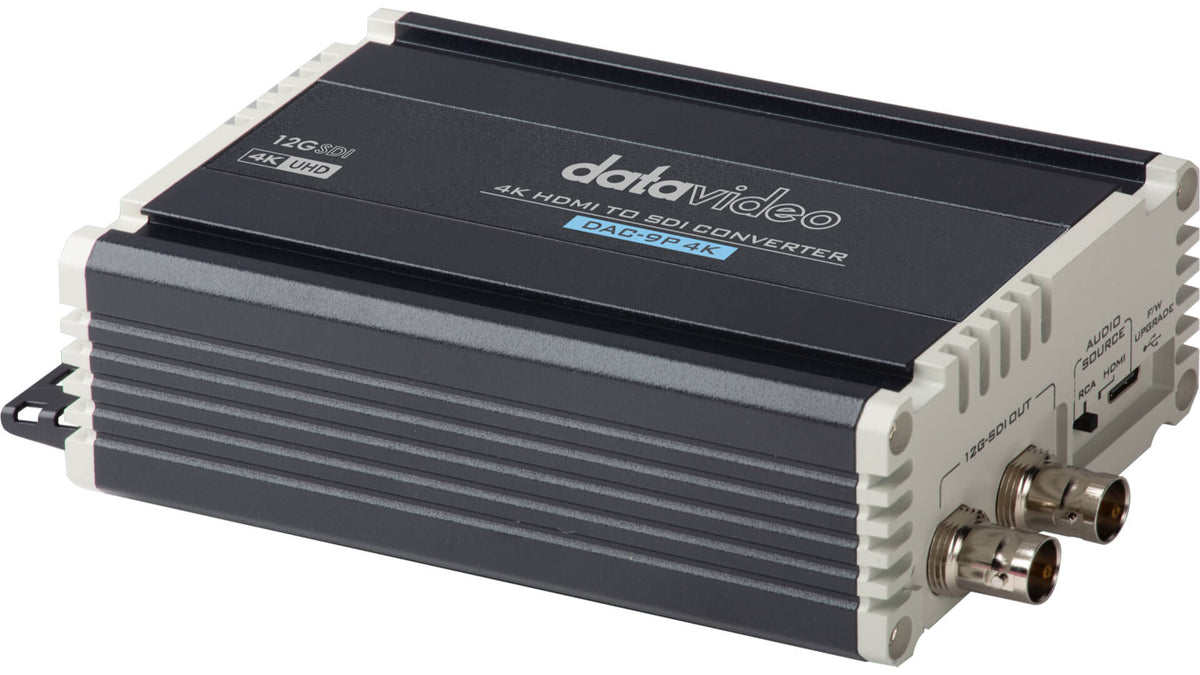

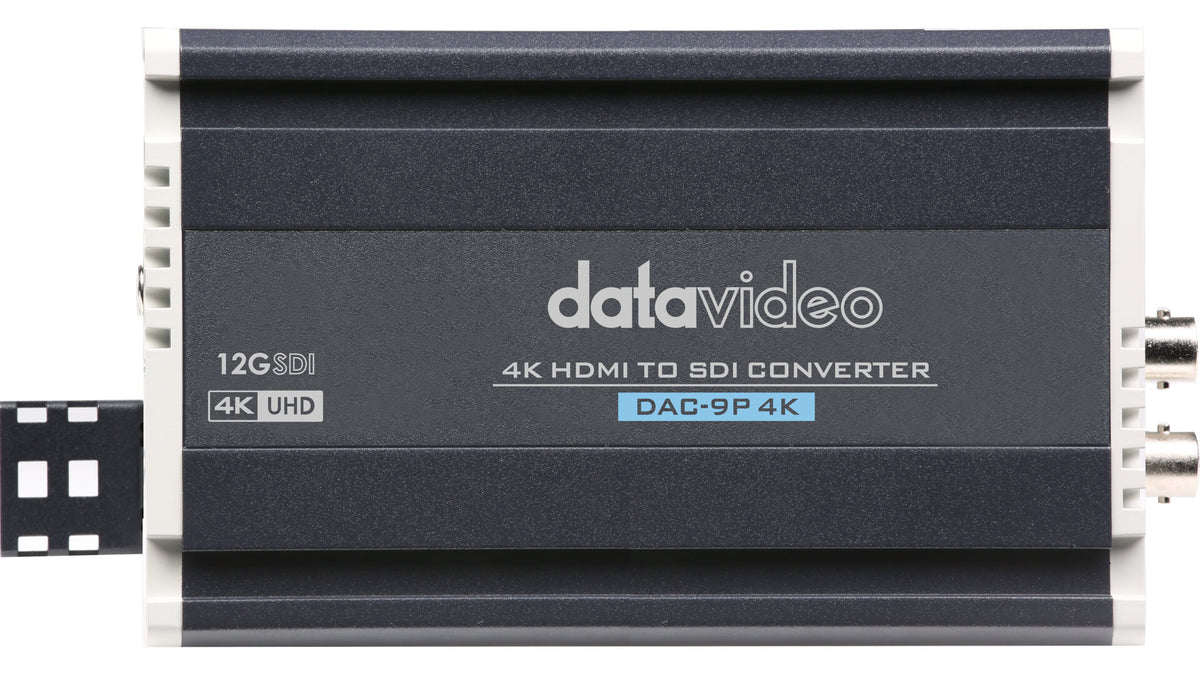

The Datavideo DAC-9P 4K is a converter from Datavideo, supplied in India by Universal AV Solutions. DAC-9P 4K HDMI to SDI Converter. HDMI 2.0 input to 12G-SDI output.
Key features
- HDMI 2.0 input to 12G-SDI output
- HDMI loop-through output
- Audio selectable from HDMI input or RCA analog input
- Supports DCI 4K and UHD 4K
- Plug and play, no dip switches or laptop adjustment
- Re-clocking for reduced jitter and longer-distance transmission
- Embeds audio into the SDI output
- Aluminum housing
- HDCP protection, with possible compatibility issues for some computers and MacBooks
Technical specifications
- Conversion: 4K HDMI to 12G-SDI

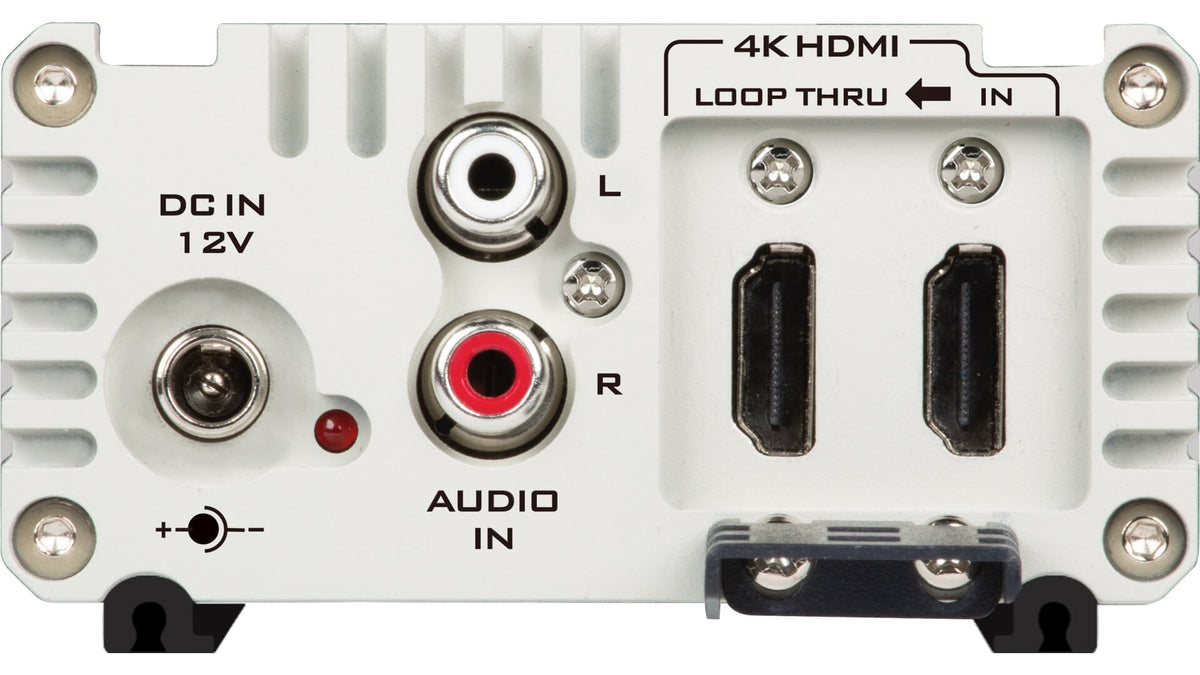

- Video input: 1x HDMI 2.0 Type A; loop through 1x HDMI 2.0 Type A
- Video outputs: 2x 12G-SDI (3G-SDI Level A)
- Audio inputs: 2x RCA (unbalanced L/R); HDMI embedded 24-bit 8-channel
- Audio outputs: SDI embedded 24-bit 8-channel
- Input formats: 4096x2160p and 3840x2160p at 60/50/30/25/24; 1080p 60/50/30/25/24; 1080i 60/50; 720p 60/50
- Reclock: Yes; SDI cable drive: Yes; updates via USB Type C
- 136.5 x 85 x 45 mm; 0.39 kg; 0 to 40 C; DC 12V, 9.4W
What's in the box (per official Datavideo page)
- 1 x DAC-9P 4K
- 1 x AD Switch DC 12V
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
