Product information

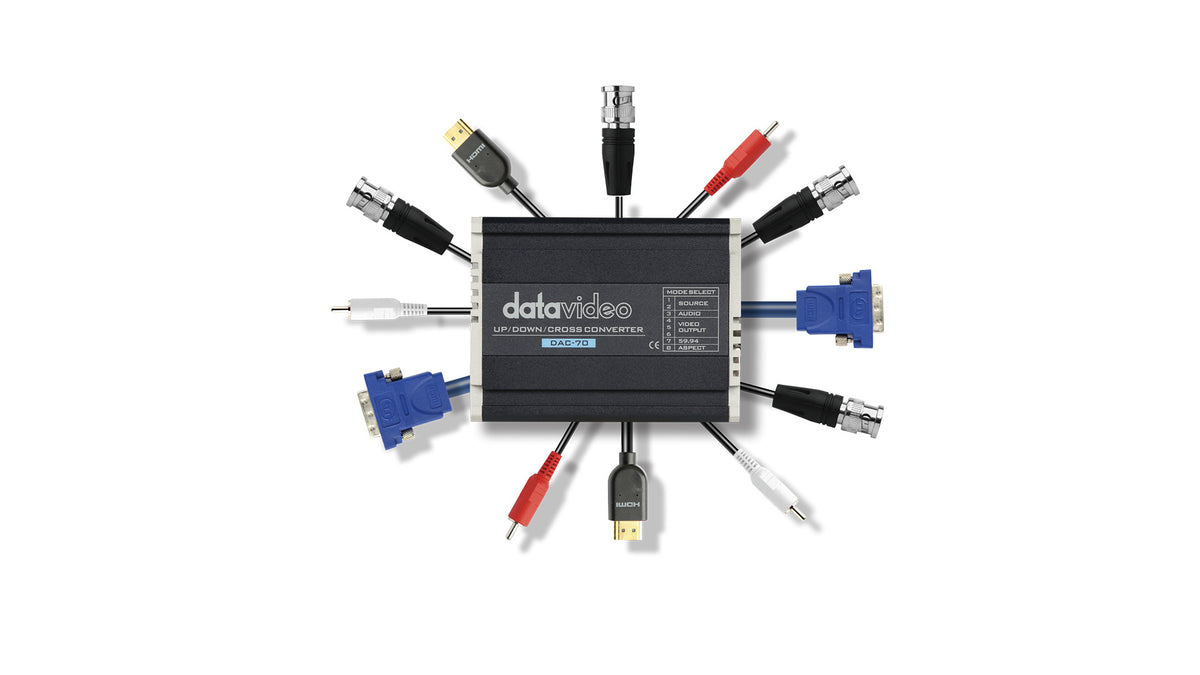

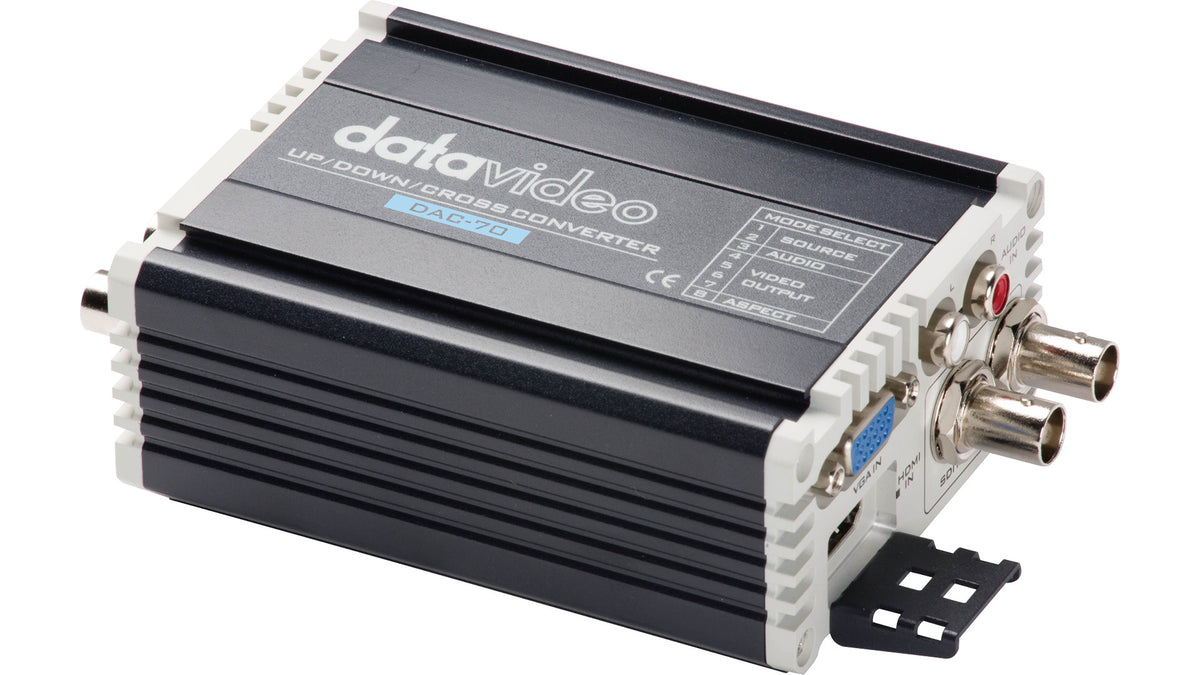

The Datavideo DAC-70 is a converter from Datavideo, supplied in India by Universal AV Solutions. DAC-70 Up / Down / Cross Converter. Ultra wide range scaler supporting SD to Full HD resolutions.
Key features
- Ultra wide range scaler supporting SD to Full HD resolutions
- Keep embedded audio or replace it with external audio via RCA inputs
- Adjustable brightness, contrast, hue and saturation via DAC Center Utility over USB
- Built-in distribution amplifier with 3 outputs (2x SDI, 1x HDMI)
- Aluminum alloy, heavy-duty housing
Technical specifications

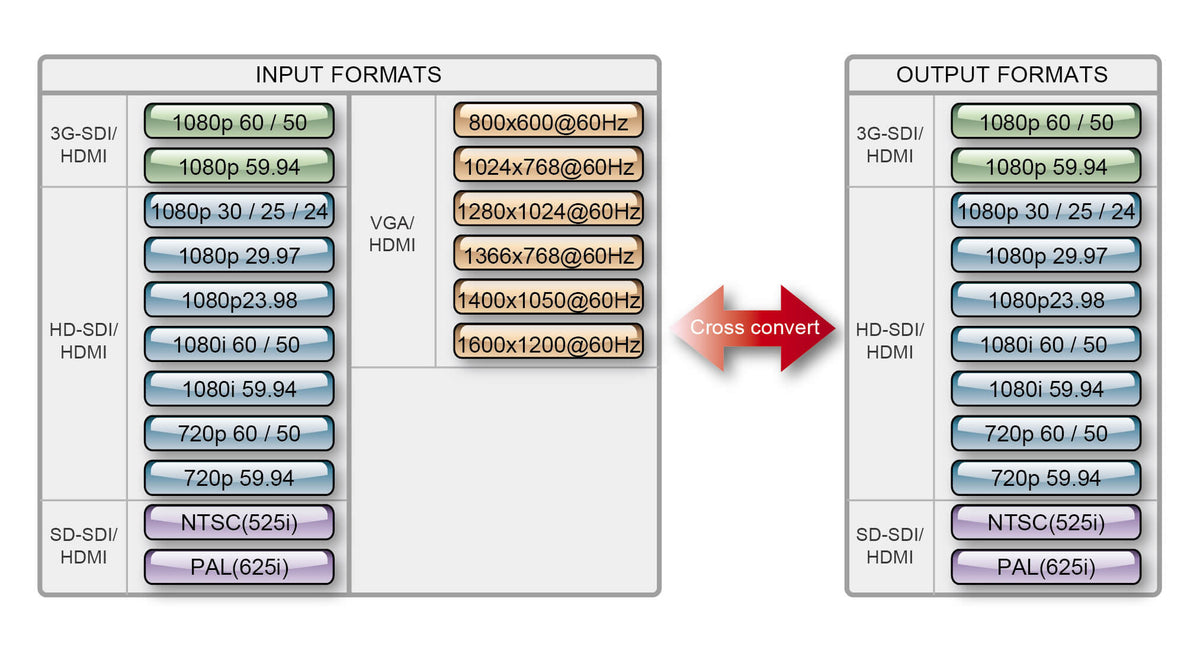

- Conversion: VGA/HDMI/SDI to HDMI/SDI, multi-format up/down/cross
- Video inputs: 1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI (Level A and B)
- Video outputs: 2x 3G/HD/SD-SDI with embedded audio, 1x HDMI
- Loop through: Yes
- Audio inputs: 2x RCA stereo pair, 2x SDI/HDMI embedded
- Audio outputs: SDI and HDMI embedded, up to 8CH, 48kHz PCM
- Equalizer, reclock, SDI cable drive: Yes
- Updates: Mini USB x1
- 112 x 85 x 45 mm; 0.4 kg; 0 to 40 C; DC 12V, 6W
What's in the box (per official Datavideo page)
- 1 x DAC-70
- 1 x AD Switch DC 12V
- 1 x DIP switch Pin 8 label
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
