Product information

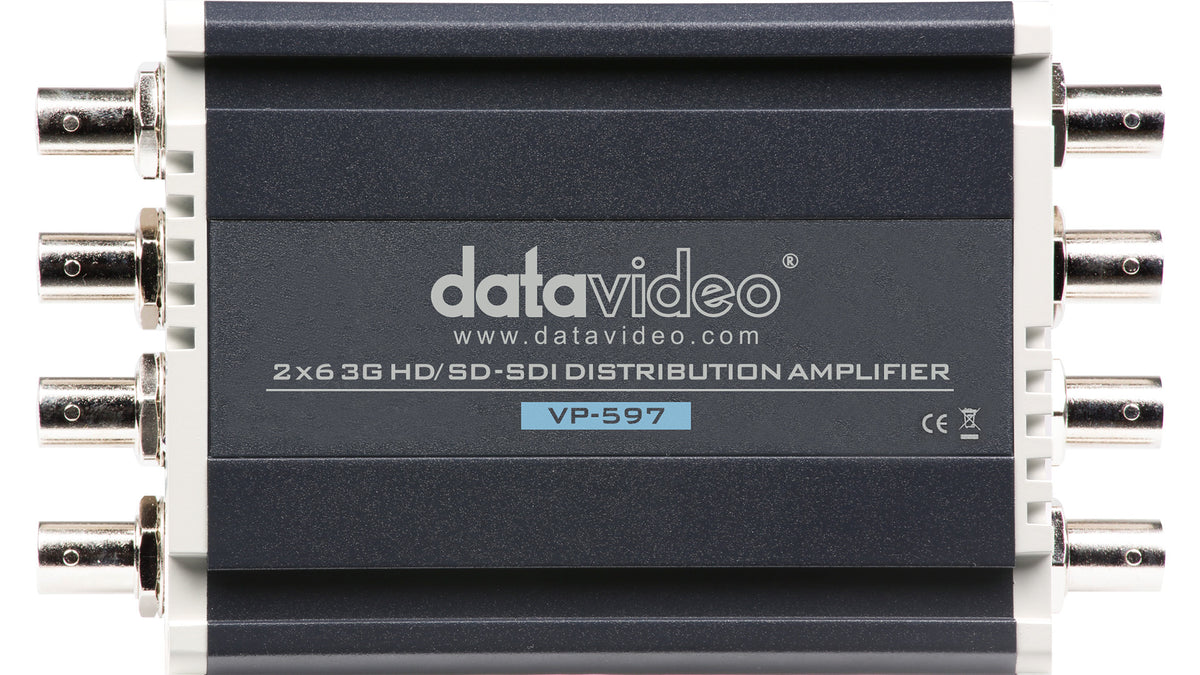

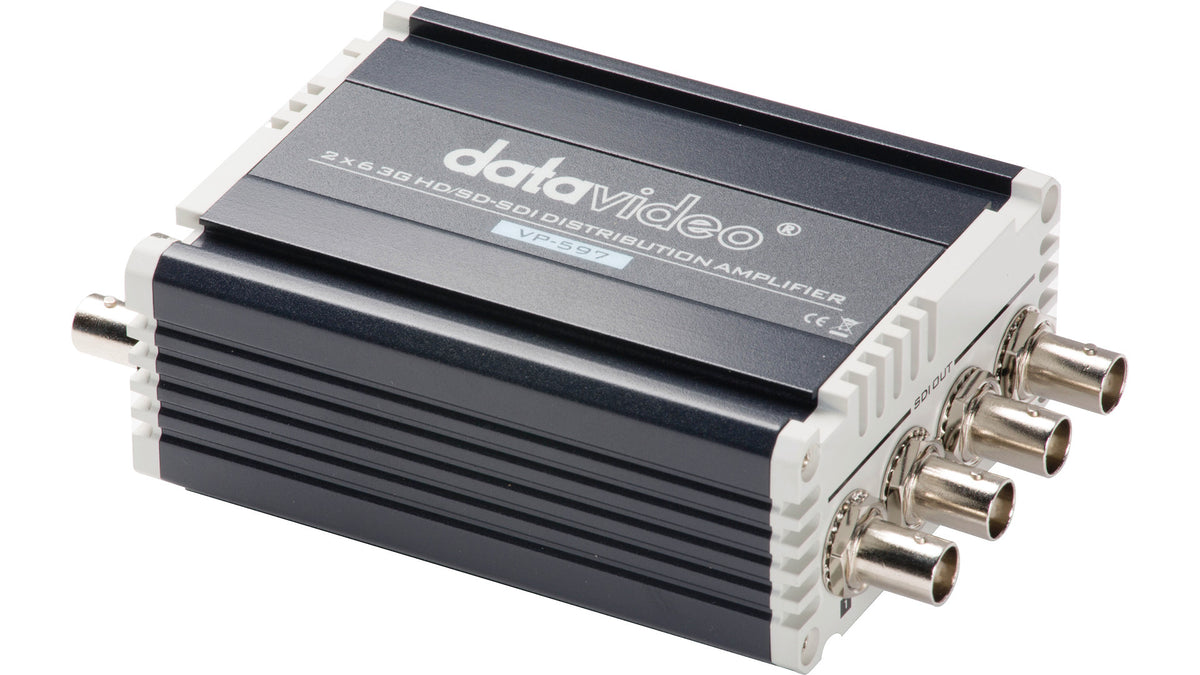

The Datavideo VP-597 is a converter from Datavideo, supplied in India by Universal AV Solutions. VP-597 2x6 3G HD/SD-SDI Distribution Amplifier. Supports 3G/HD/SD SDI video with embedded Audio.
Key features
- Supports 3G/HD/SD SDI video with embedded Audio

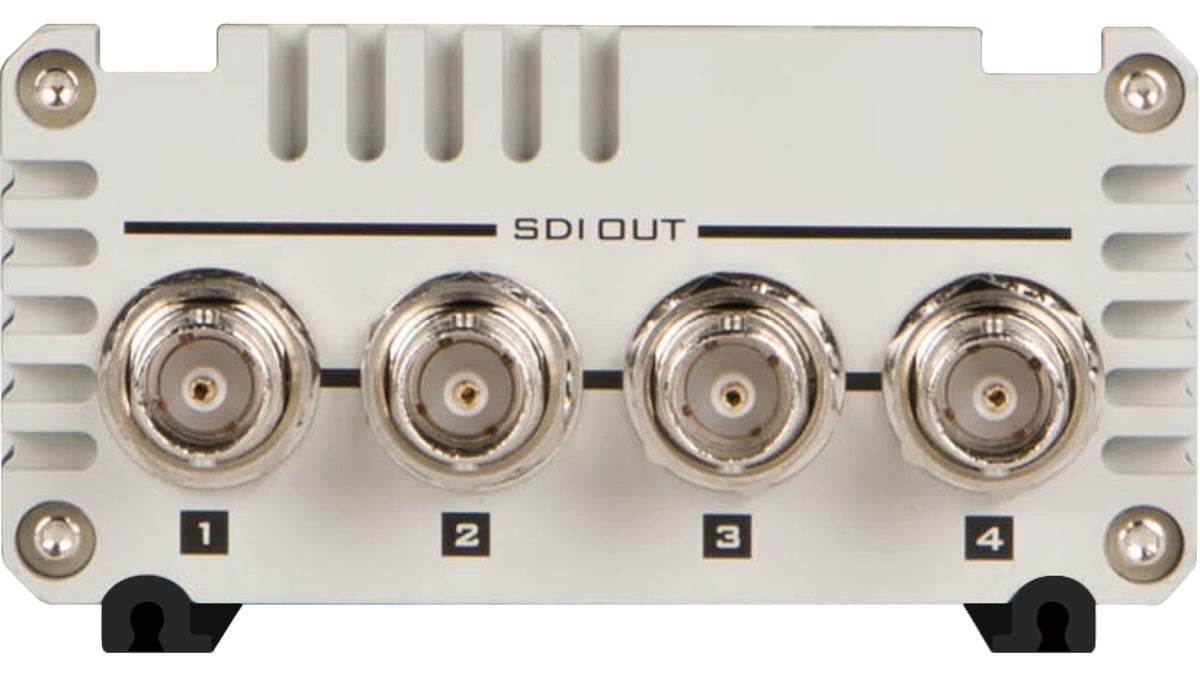

- 2 x 3G/HD/SD-SDI inputs and 6 x 3G/HD/SD-SDI distribution outputs
- Re-clock design for long distance transmission
- Supports embedded audio SDI
- Two input video can be controlled by A/B switch or GPI remote
Technical specifications
- Model: VP-597
- Input: 2 x BNC; Output: 6 x BNC
- Video format: 1080p 60/59.94/50/29.97/23.98; 1080i 60/59.94/50; 720p 60/59.94/50; 525i, 625i
- Audio: SDI embedded, up to 8 channels, 48KHz, PCM
- Power: 12V / 2.8W
- 127 x 85 x 45 mm; 0.5 kg; 0~40 C
What's in the box (per official Datavideo page)
- 1 x VP-597 product
- 1 x AD Switch 12V 500mA
- 1 x 3.5 phi GPI Cable Stereo
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
