Product information

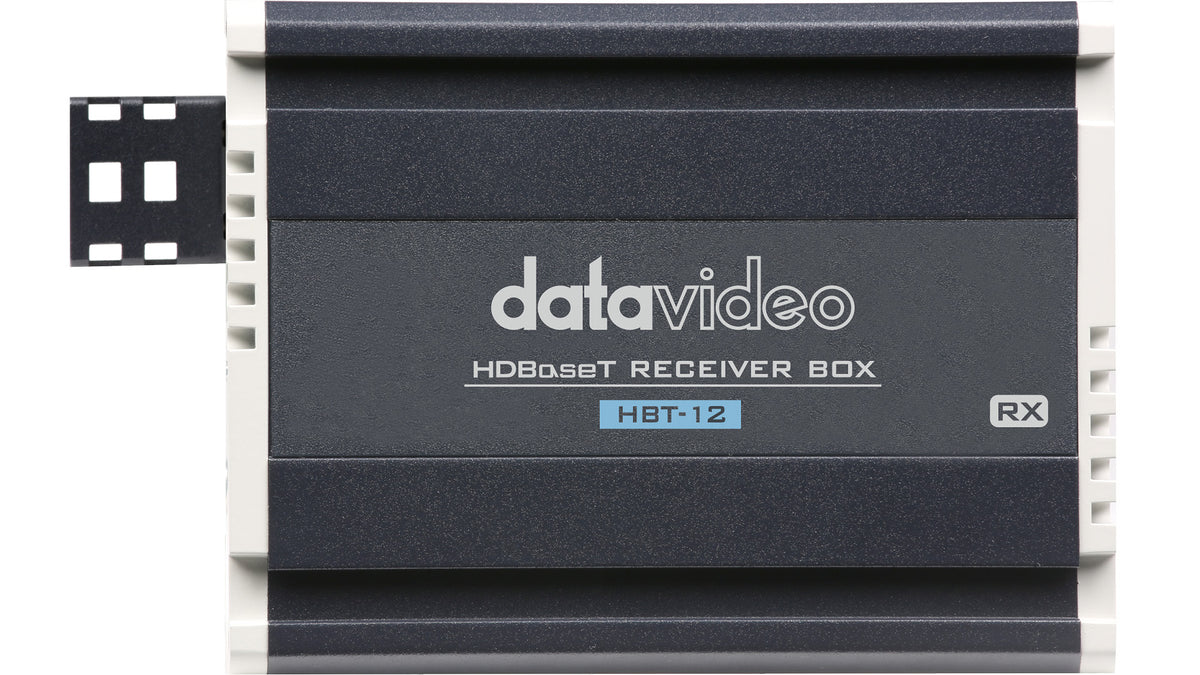

The Datavideo HBT-12 is a hdbaset receiver from Datavideo, supplied in India by Universal AV Solutions. HBT-12 HDBaseT Receiver Box. Long distance 4K solution and carry everything in one ethernet cable.
Key features
- Long distance 4K solution and carry everything in one ethernet cable
- HDMI video, DVIP control, and power (PoE++) over one cable
- PoE++ power to the transmitting device
- Transmits video, audio, DVIP, RS-422/232 control, and PoE+ over a single Cat 7 cable
- Extends video transmission to 120m
- Supports DVIP, RS-422, and RS-232 control protocols
- Supports up to 4K 25/30p; receives up to 4Kx2K video
- Aluminum alloy, heavy duty design
- Low heat dissipation
Technical specifications
- Model Number: HBT-12
- Video/Audio Input: HDBaseT RJ-45 x1
- Video/Audio Output: HDMI x1
- Supported Video Format: 3840x2160p: 30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50
- DVIP: RJ-45 x1 (input)
- RS-422/ RS-232: RJ-45 x1 (input)
- Power: DC IN: DC 56V
- PoE Output: 65W
- HDBaseT Distance: 1080p@60 100m by CAT.7 cable; 4K2K@30 70m by CAT.7 cable
- Dimension (LxWxH): 132 x 85 x 45 mm
- Weight: 400 g
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x HBT-12 main unit
- 1 x AC cord
- 1 x DC 56V power adaptor
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
