Product information

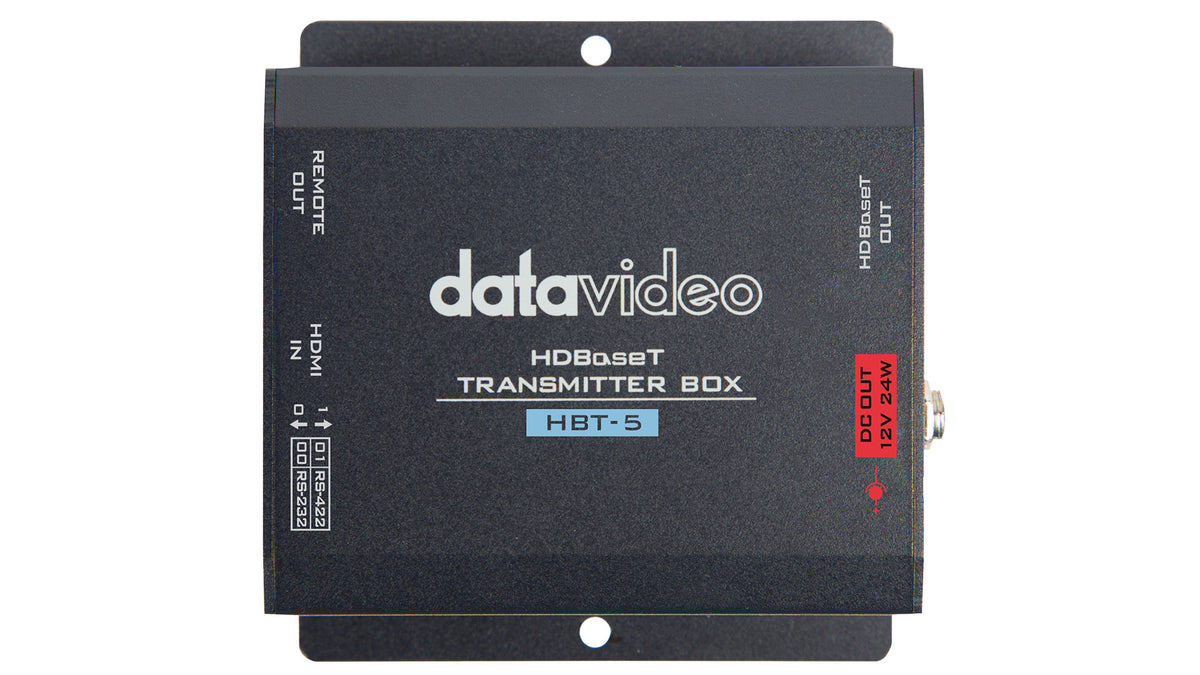

The Datavideo HBT-5 is a hdbaset transmitter from Datavideo, supplied in India by Universal AV Solutions. HBT-5 HDBaseT Transmitter Box. Supports HDMI Deep Color, full 3D, and 4K@30.
Key features
- Supports HDMI Deep Color, full 3D, and 4K@30
- Transmits HDMI up to 60m at 1080p and 35m at 4K@30 over Cat 6
- Receiver powered by power supply or PoE from transmitter
- HDCP compliant
- RS-232/RS-422 control
- Default EDID and EDID learning from display
- Dolby TrueHD and DTS Master audio support
Technical specifications
- Model Number: HBT-5
- Video/Audio Input: HDMI x1
- Video/Audio Output: HDBaseT RJ-45 x1
- Supported Video Format: 3840x2160p: 30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080i: 60/59.94/50, 720p: 60/59.94/50; 525i59.94 NTSC, 625i50 PAL
- Video Process: 4K2K30 4:4:4 8bit; 4K2K60 4:2:0 8bit
- Video bandwidth: Single-link 340MHz [10.2Gbps]
- RS-422/RS-232: YES
- Power: DC Out: 12V 24W
- HDBaseT Distance: 1080p@60 60m (198ft) by CAT6 cable; 4K2K@30 35m (114ft) by CAT6 cable
- HDMI compliance: HDMI Deep Color, full 3D & 4K2K@30
- HDCP compliance: HDCP 2.2/1.4
- Audio support: Surround sound [up to 7.1ch) or stereo digital audio
- Dimension (LxWxH): 88 x 76 x 30 mm
- Weight: 151 g
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x HBT-5 main unit
- 1 x DC to DC cable
- 2 x Screw
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
