Product information

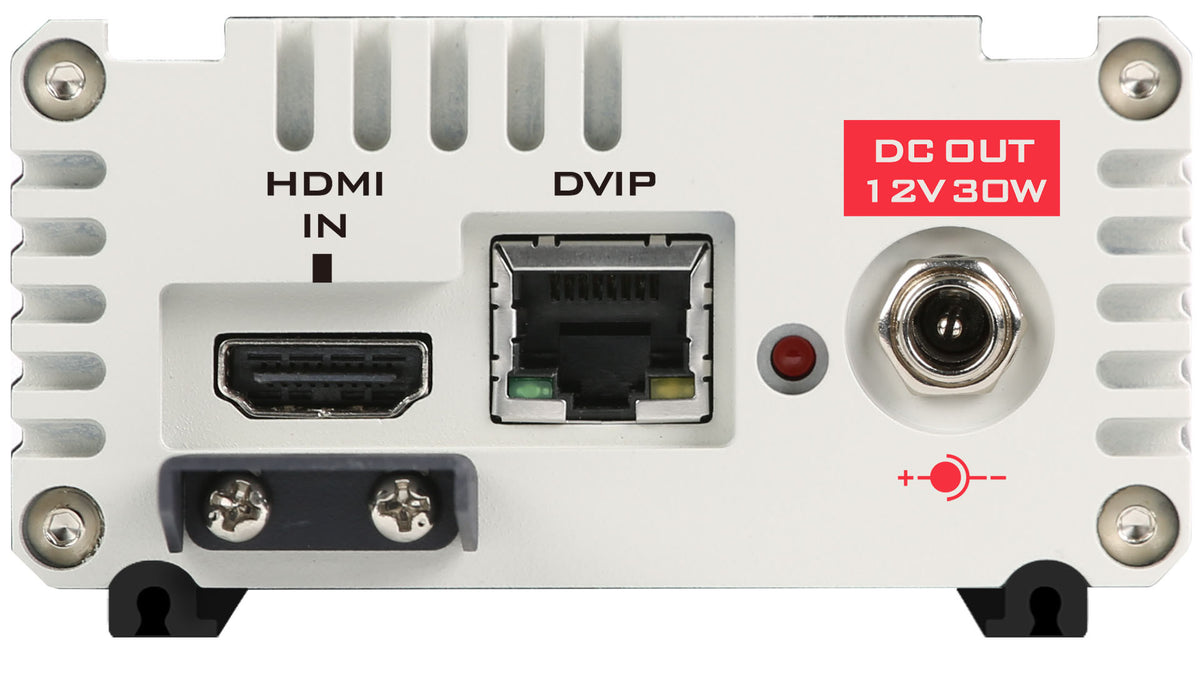

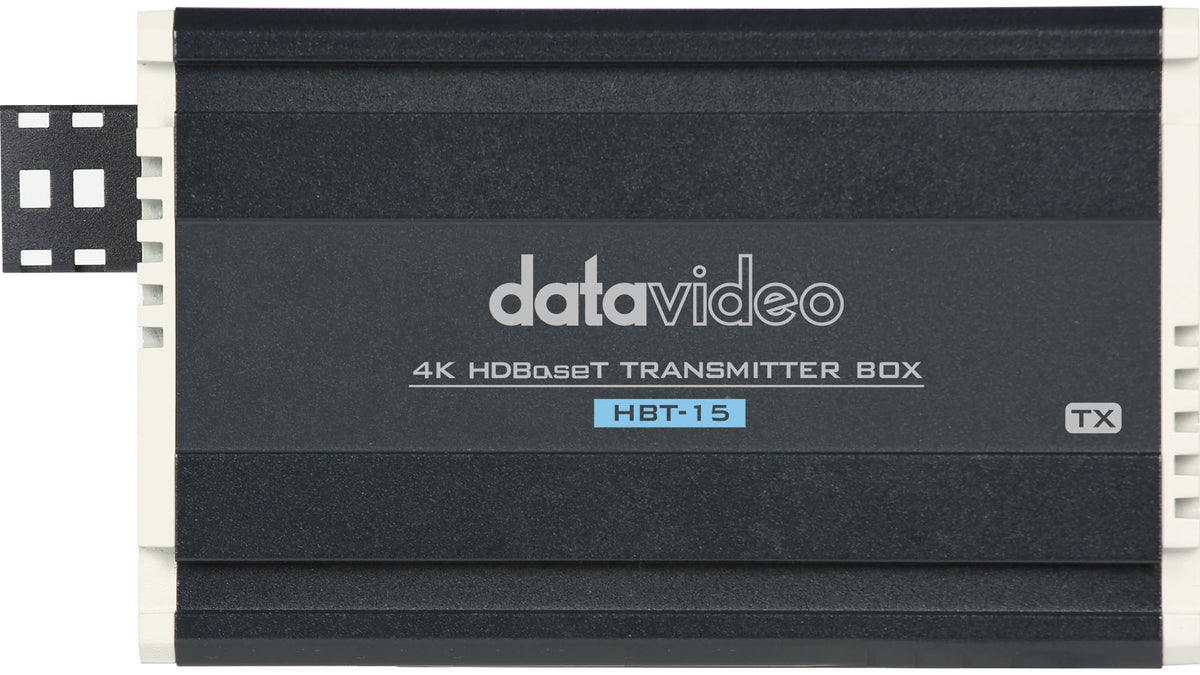

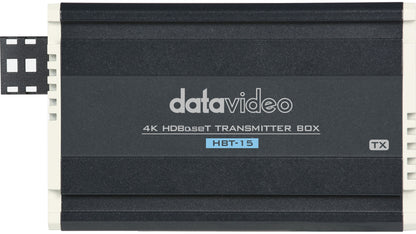

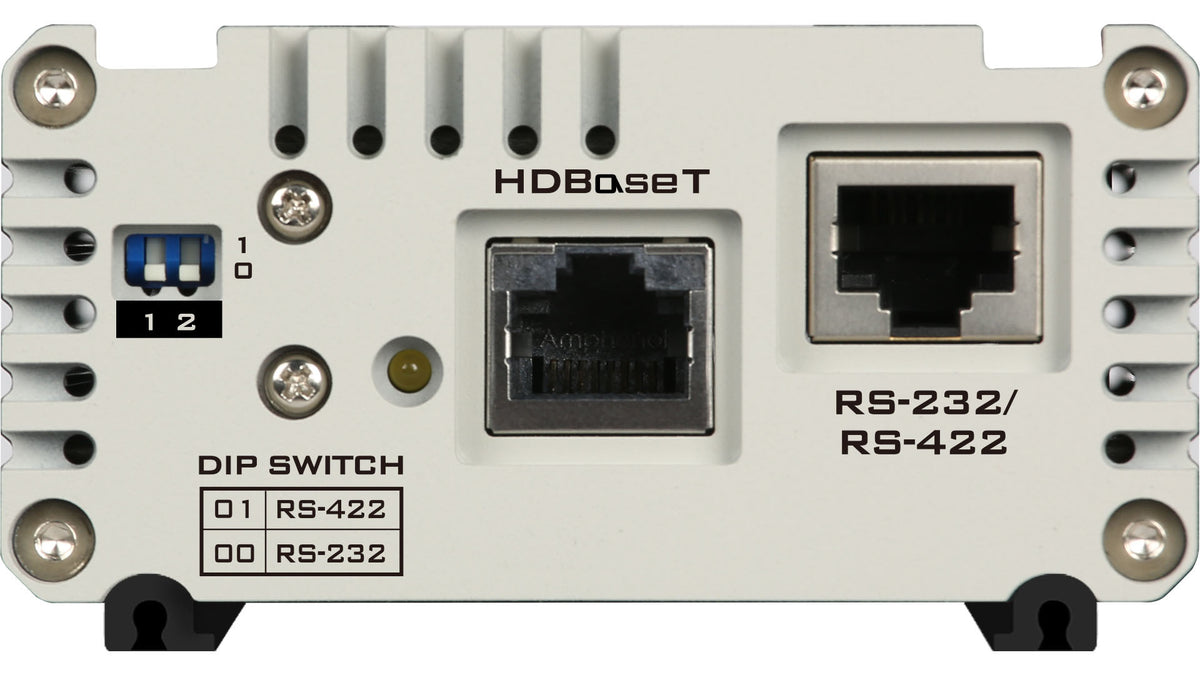

The Datavideo HBT-15 is a hdbaset transmitter from Datavideo, supplied in India by Universal AV Solutions. HBT-15 4K HDBaseT Transmitter Box. Long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable.
Key features
- Long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable
- Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable
- HDMI Deep Color support
- Powered by power supply or PoE from transmitter
- HDCP compliant
- DVIP, RS-422, and RS-232 control protocols
- Default EDID and EDID learning from display
- Dolby TrueHD & DTS Master audio support
- Aluminum Alloy and Heavy Duty Design
Technical specifications
- Model Number: HBT-15
- Video/Audio Input: HDMI 2.0 x1
- Video/Audio Output: HDBaseT RJ-45 x1
- Supported Video Format: 2160p: 60/59.94/50/30/29.97/25; 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50; 480i: 59.94; 576i: 50
- Video Process: 4K2K60 4:4:4 8bits; 4K2K60 4:2:0 10bits
- Video bandwidth: Single-link 600MHz [18Gbps]
- DVIP: RJ-45 x1 (output)
- RS-422/ RS-232: RJ-45 x1
- Power: DC Out: 12V 30W
- HDBaseT Distance: 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
- HDMI compliance: HDMI 2.0
- HDCP compliance: HDCP 2.2/1.4 (Bypass)
- Audio support: Surround sound (up to 7.1ch)
- Dimension (LxWxH): 157 x 85 x 46mm
- Weight: 474 g
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x HBT-15 main unit
- 1 x DC to DC cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
