Product information

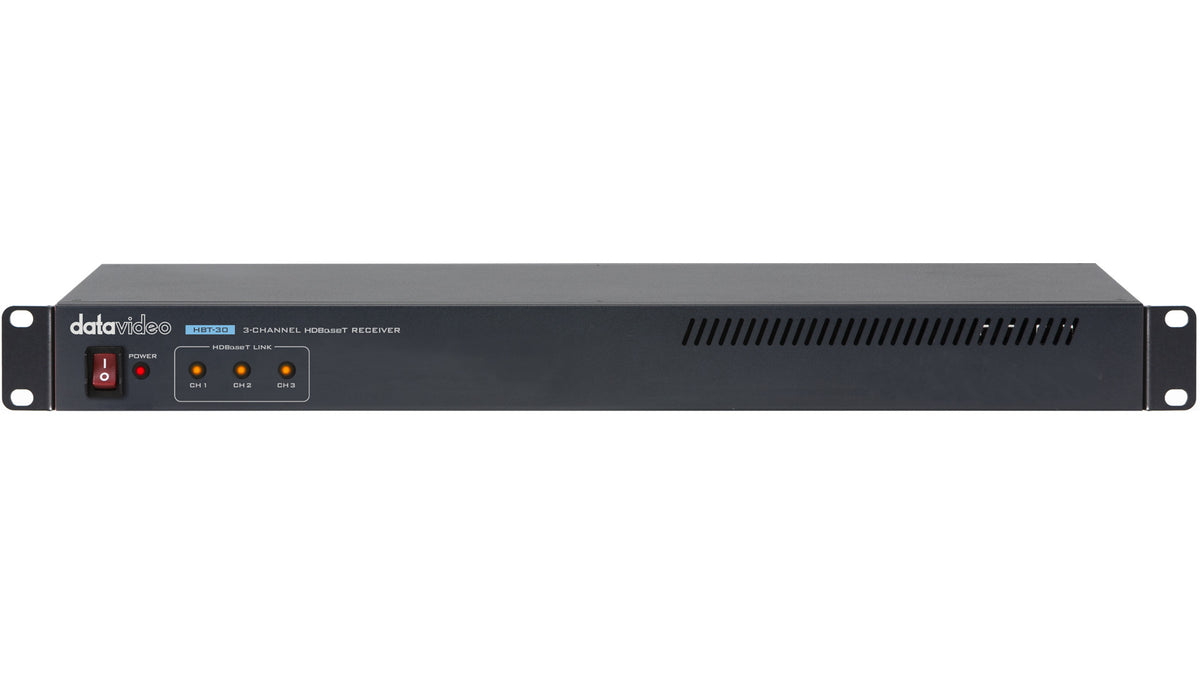

The Datavideo HBT-30 is a hdbaset receiver from Datavideo, supplied in India by Universal AV Solutions. HBT-30 3-Channel HDBaseT Receiver. An essential link to connect all your equipment for your 4K live production.
Key features
- An essential link to connect all your equipment for your 4K live production
- Supplies power, 4K50/60 video, and camera control to up to 3 devices at up to 100 m
- Outputs HDMI, RS-422, and IP control signals at the same time
- Powers PTZ cameras via PoE and carries signals over a single Ethernet cable
- Remotely controls camera settings such as iris and presets
- Works as a camera controller, video switcher, and ISO recorder integration point
- Controls up to three HDBaseT cameras from one receiver
Technical specifications
- Model Number: HBT-30
- Video/Audio Input: HDBaseT (RJ-45) x 3; Cable Type: Cat6A shielded
- Video/Audio Output: HDMI 2.0 x 3
- Supported Video Format: 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080i: 60/59.94/50; 720p: 60/59.94/50; 525i: 59.94 NTSC; 625i: 50 PAL
- Video Process: 4K60 4:4:4, 8bit; 4K60 4:2:2 10bit; 4K60 4:2:0 10bit
- Video bandwidth: Single-link 594MHz [18Gbps]

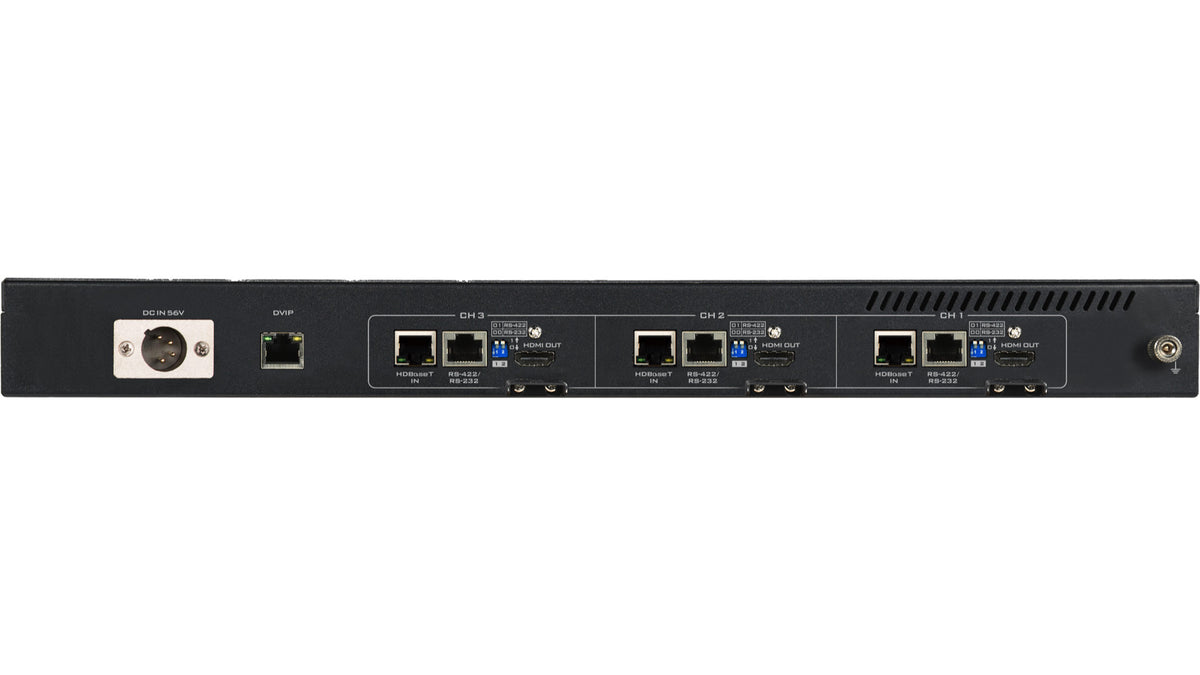

- DVIP: RJ-45 x1 (input)
- RS-422/RS-232: RJ-45 x 3 (RS-232/RS-422)
- Power: DC IN: DC 56V
- PoE Output: 65W per channel
- HDBaseT Distance: 1080p@60 up to 100M by CAT. 6A cable; 4K@60 up to 100M by CAT. 6A cable
- HDMI compliance: HDMI Deep Color & 4K@60
- HDCP compliance: HDCP 2.2/1.4 (Bypass)
- Audio support: Surround Sound [up to 7.1 Channel) or Stereo Digital Audio
- Dimension (LxWxH): 440 x 125 x 44.5 mm
- Weight: 1.8Kg
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x HBT-30 main unit
- 1 x AC cord
- 1 x DC 56V power adaptor
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
