Product information

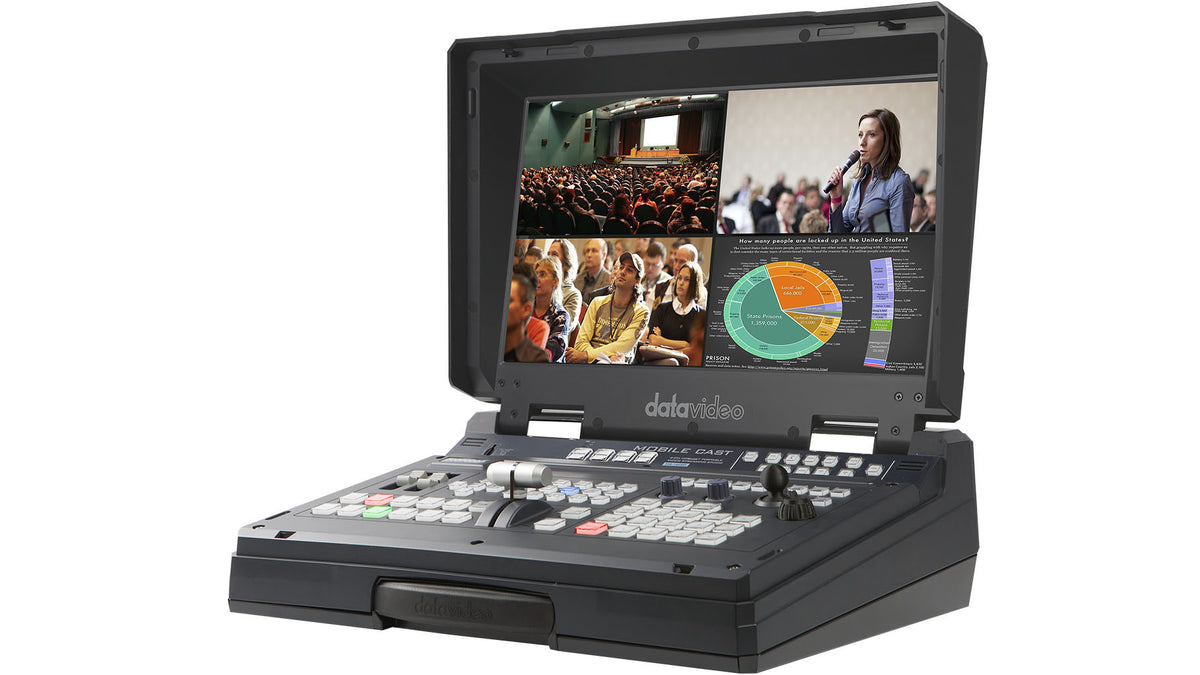

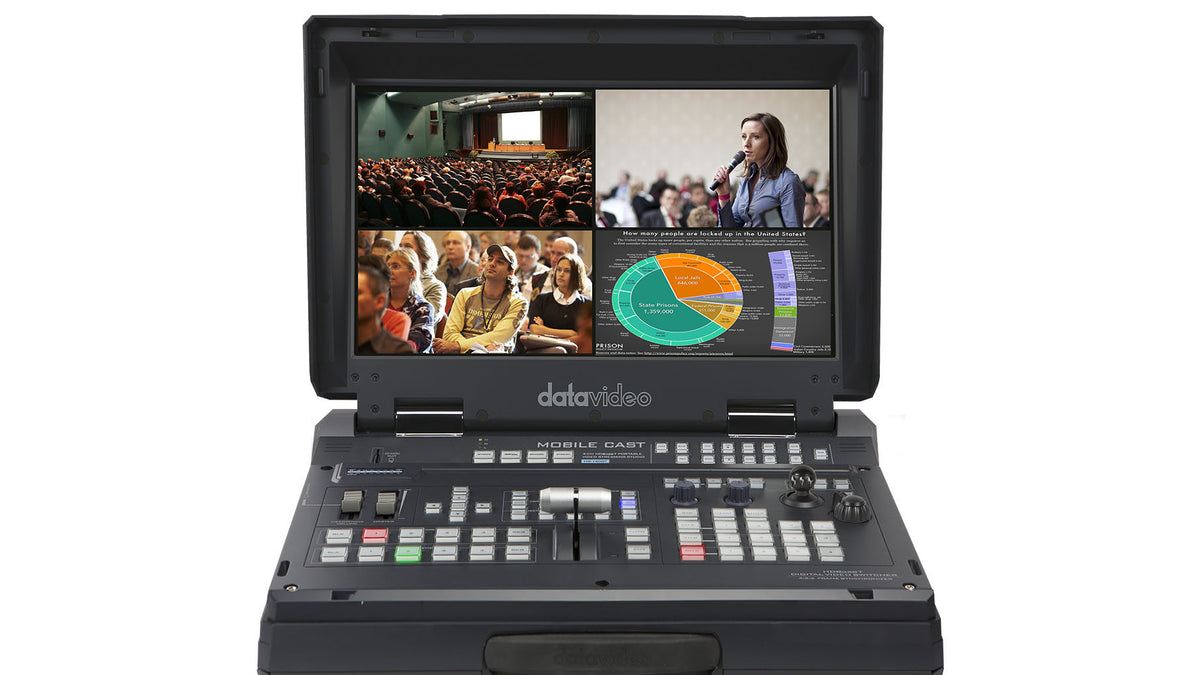

The Datavideo HS-1600T MK II is a mobile video production studio from Datavideo, supplied in India by Universal AV Solutions. HS-1600T MK II 4-Channel HDBaseT Portable Video Streaming Studio. Auto Tracking camera control.
Key features
- Auto Tracking camera control
- Variety of video (4:4:4 10-bit) and audio inputs/outputs
- Made with HDBaseT Technology
- Built-in camera control (up to 3 Datavideo PTZ cameras)
- Built-in H.264 recorder for SD cards
- Dual Stream encoder (Facebook Live, YouTube, Twitch, and more)
- Direct Access to Auto Tracking Features
- Smart PTZ Speed Adaptation
- Quick Access to Framing Options
- Custom AI Object Tracking
- 3 Speed Settings: Fast, Medium, and Slow
- 17.3'' LED Backlit Monitor
Technical specifications
- Model Number: HS-1600T MARK II
- Video Standard: HD & SD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz; 576i/p 50Hz; 480i/p 59.94Hz
- Video Input: 3 x HDBaseT; 1 x HDMI
- Computer Graphic Interface: 1 via HDMI
- Down-converted Output: Yes
- Video Output: 3x HDMI PGM; 1x HDBaseT PGM; 1x STREAM (RJ-45); Cable Type: Cat6A shielded
- Analogue Audio Input: 2x Balanced XLR; 1x Stereo RCA (L/R); De-embedded Digital Audio
- Analogue Audio Output: 1x Stereo headphone
- Digital Embedded Audio Support: Input 2 channels, Output 2 channels
- USK: 1x USK support Lumakey
- Picture in Picture: 1
- Built-in Audio Mixer: Yes, 4 channels
- Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
- Streaming: H.264 / AVC, Main/ High Profile; Configurable Bit-rate up to 10Mbps
- Streaming Audio Encode: AAC-LC; Configurable bit rate range from 32Kbps to 384Kbps; Sample rate: 48KHz, 16bit
- Streaming Protocol: TS over TCP/UDP (unicast & multicast); RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming); RTMP/RTMPS (Publish); HLS; SRT
- Streaming Control: Web browser UI for configuration and control Socket commands
- Recording File System: FAT, exFAT, NTFS
- Recording File Format: MP4
- Streaming & Recording Setting Control: Web UI for system configuration and control
- Special Features: Built-in camera controller
- Dimension (LxWxH): 455 x 355 x 134 mm
- Weight: 17.2 Lbs (7.8 kg), Reinforce Plastic Case
- Power: DC 48V, 4.16A
What's in the box (per official Datavideo page)
- 1 x HS-1600T MARK II Product
- 1 x AD Switch DC 56V with AC Cord
- 3 x Ethernet Cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
