Product information

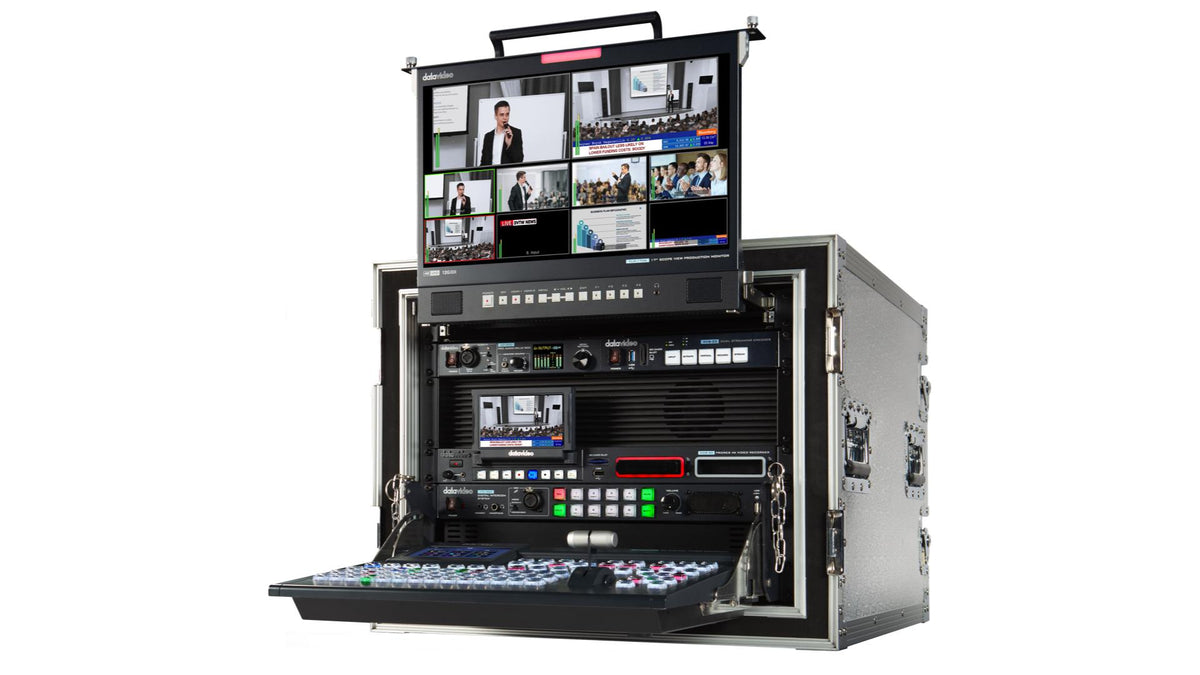

The Datavideo MS-4000 is a mobile video production studio from Datavideo, supplied in India by Universal AV Solutions. MS-4000 4K 8-Channel Mobile Video Studio. 8-Channel 4K Live Switching: 12G-SDI and HDMI 2.0 inputs, 5-inch touchscreen, quad split, XPT, AUX output, transitions, PiP, logo insertion, audio mixing settings (SE-4000).
Key features
- 8-Channel 4K Live Switching: 12G-SDI and HDMI 2.0 inputs, 5-inch touchscreen, quad split, XPT, AUX output, transitions, PiP, logo insertion, audio mixing settings (SE-4000)
- Digital Intercom: wired digital system with 8 channels (ITC-300)
- 4K UHD Monitoring: 17.3-inch LCD at 3840 x 2160 with 12G-SDI and HDMI 2.0 loop I/O (TLM-170K)
- ProRes 4K Recording: 2160p60 recording, multiple simultaneous 1080p streams (HDR-90)
- Audio delay, mixing, equalizer and effects processing (AD-300)
- Dual Power Supply: redundant power (PD-2A, PD-4A)
- H.264 encoding, recording and streaming via NVS-35
Technical specifications
- Model Number: MS-4000
- Digital Video Switcher: SE-4000 x1
- 17.3" Rack Mount LCD: TLM-170KM x1
- Recorder: HDR-90 x1
- Intercom/Tally System: ITC-300 x1
- SDI Vector Scope: Built-in TLM-170KM
- Audio Mixer: AD-300 x1
- Power Distributor (8-way): PD-2A & PD-4A (Backup)
- H.264 Video Streaming Server: NVS-35
- Rack System Integration: 8U Flight Case
- Operating Temp. Range: 0 to 40 °C
What's in the box (per official Datavideo page)
- 1 x MS-4000 product
- 4 x ITC-300SL Belt Pack
- 4 x Tally LED Indicator
- 4 x Headset with microphone
- 1 x Goose neck MIC
- 4 x Ethernet Cable
- 4 x RJ-45 Protective Shield Set
- 4 x GPI Cable
- 1 x AC Power Cord
- 5 x 120mm cable tie
- 10 x 200mm cable tie
- 2 x 2.5" HDD enclosure
- 1 x SATA to USB Cable
- 10 x Anti-vibration screw + M5*10 washer
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
