Product information

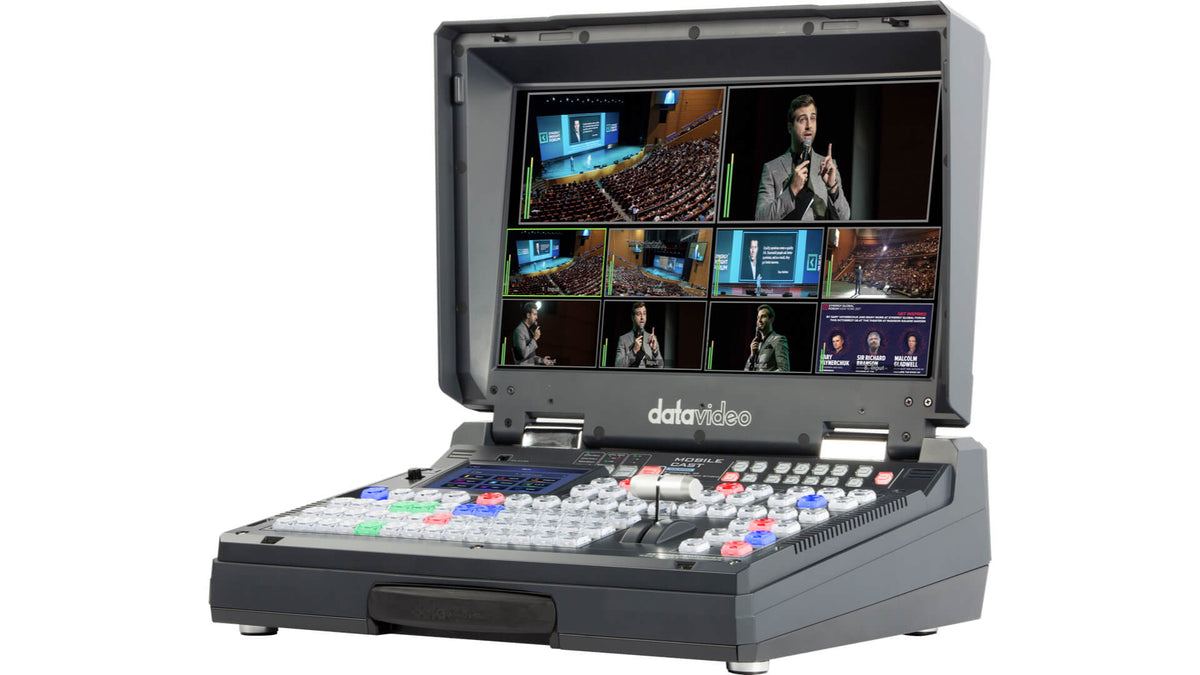

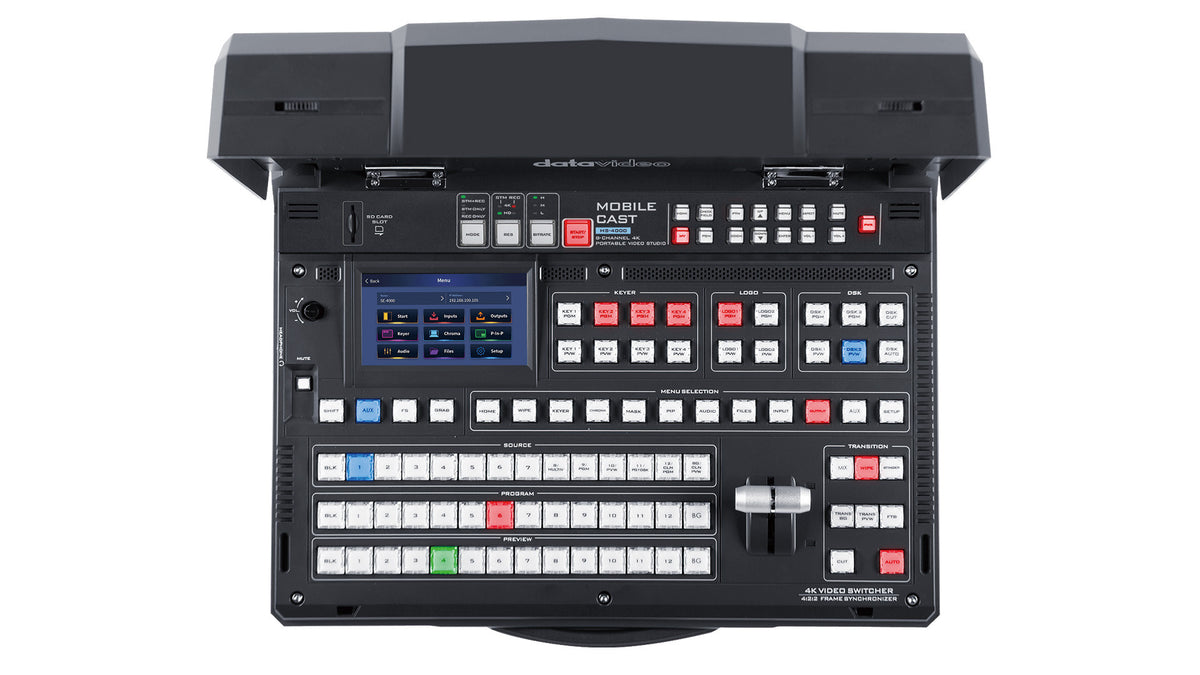

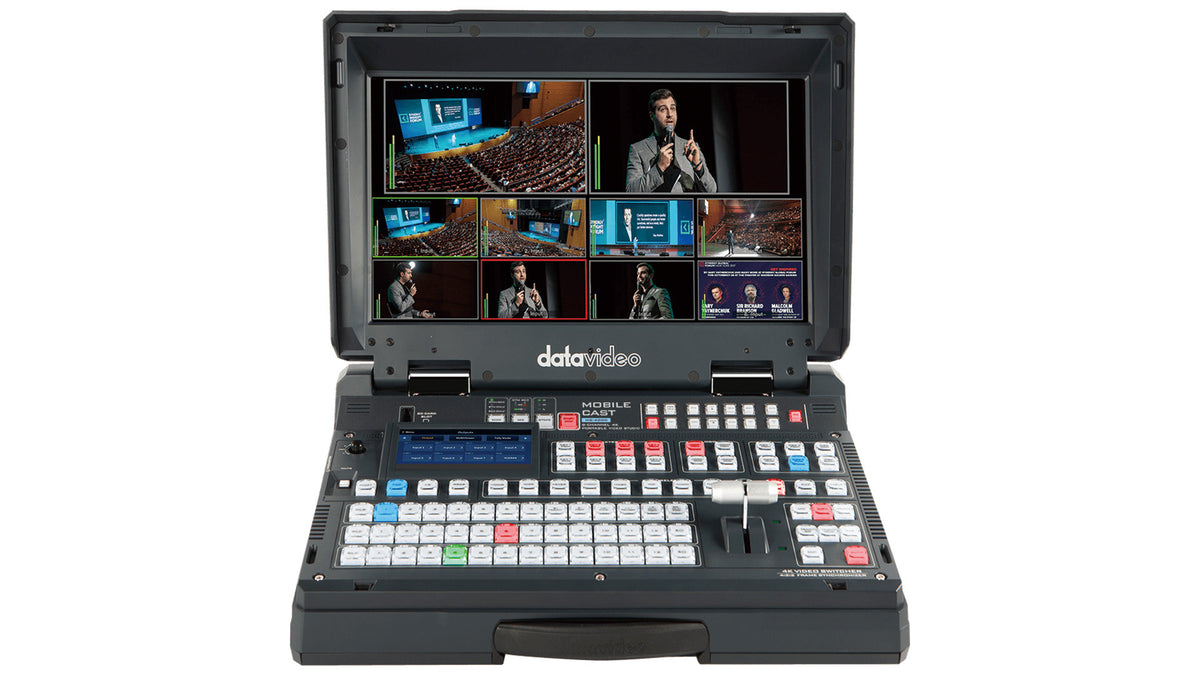

The Datavideo HS-4000 is a mobile video production studio from Datavideo, supplied in India by Universal AV Solutions. HS-4000 4K 8-Channel Portable Video Streaming Studio. 4K up to 60 FPS, HDMI 2.0 and 12G-SDI inputs.
Key features
- 4K up to 60 FPS, HDMI 2.0 and 12G-SDI inputs
- 12 inputs, 8 selectable at once
- Built-in input scaler (HD/4K up and down conversion)
- 5-inch touchscreen with customizable icons
- 17.3-inch 4K UHD multiview monitor
- Built-in recording and live streaming encoders
- Chroma, luma, linear, and downstream keyers
- Up to 4 chromakey channels
- 2 picture-in-picture windows
- 64 wipe transitions
- Built-in audio mixer and audio delay
- User memory presets (up to 125)
Technical specifications
- Model Number: HS-4000
- Video Standard: 4K & HD
- Video Format: 3840x2160p: 60/59.94/50/30/29.97/25; 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50
- Input Routable / Crosspoint: Yes
- Video Input: Total 8 live inputs (select 8 from 12); 8 x 12G-SDI; 4 x HDMI
- Computer Graphic Interface: 4 via HDMI
- Down-converted Output: Yes
- Video Output: 4 x 12G-SDI / 1 x HDMI, all assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12; 2 x HDMI PGM only; 1 x HDMI Multiview
- Analogue Audio Input: 4x Balanced XLR
- Analogue Audio Output: 2x Balanced XLR
- Digital Embedded Audio Support: Input 4 channels, Output 4 channels
- Audio Delay Calibration: Up to 16 frames
- A+V Switching: Yes
- USK: 4
- DSK: 2, support Lumakey & Linear key (Key / Fill)
- Picture in Picture: 2
- Logo Insertion: 2
- Title Creator: Yes (Coming soon by firmware update)
- Built-in Audio Mixer: Yes
- Built-in Monitor Display: 17.3" 4K TFT LED backlit, 3840x2160 pix
- Streaming (H.264): MAX RES: HD@60 420 8bit codec
- Streaming (H.265): MAX RES: 4K@60 420 8bit codec
- Streaming Audio Encode: AAC 2CH, 16bit 48KHz 192Kbps
- Streaming Protocol: RTMP; SRT
- Streaming Control: Web browser UI for configuration and control; Socket commands
What's in the box (per official Datavideo page)
- 1 x HS-4000 Unit
- 1 x AD Switch DC 48~56V with AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
