Product information

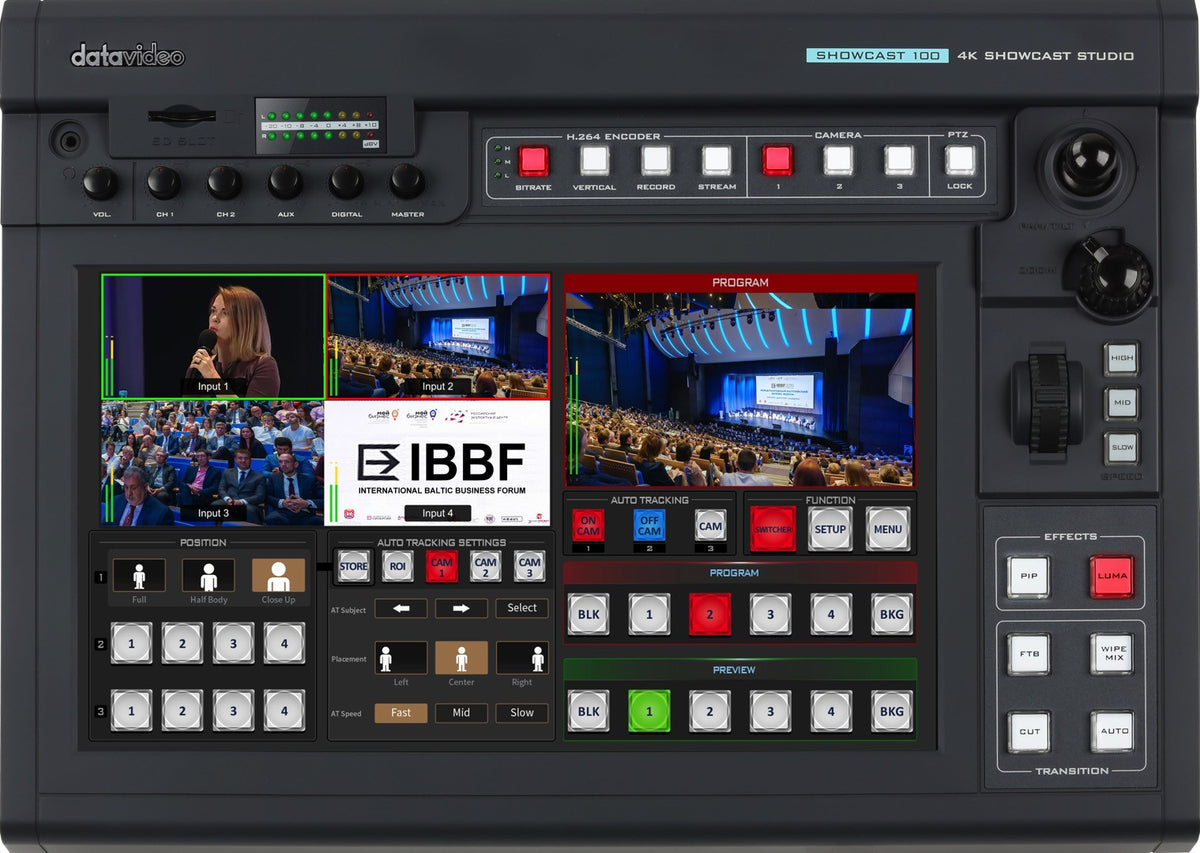

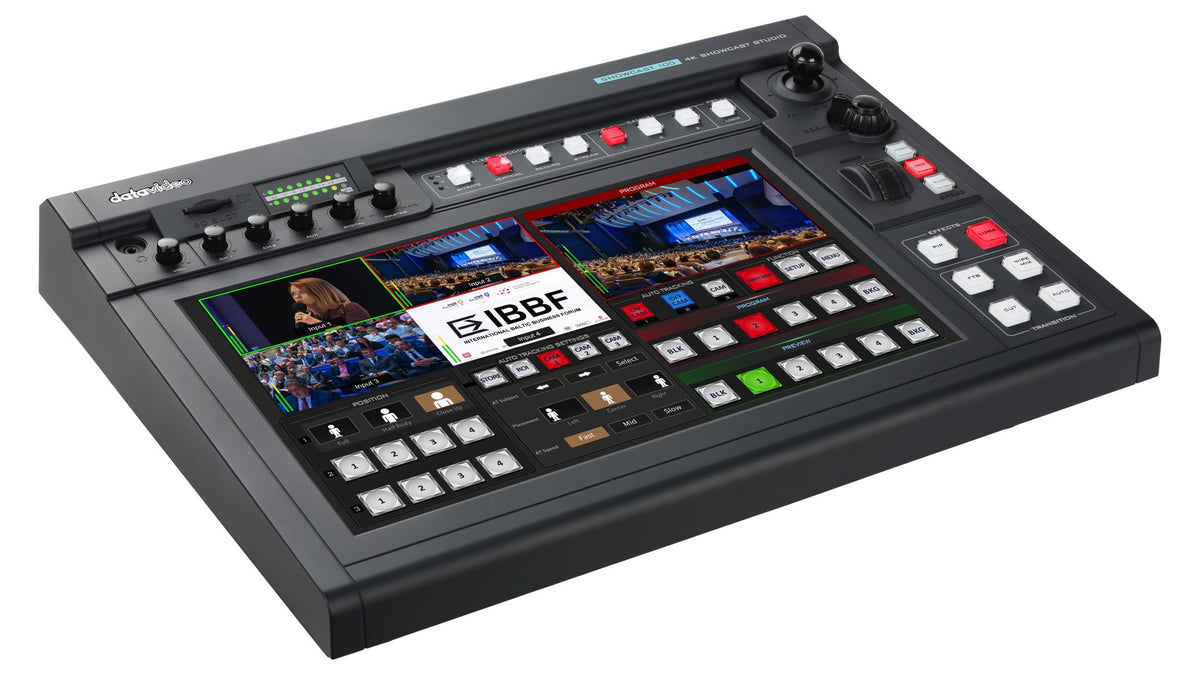

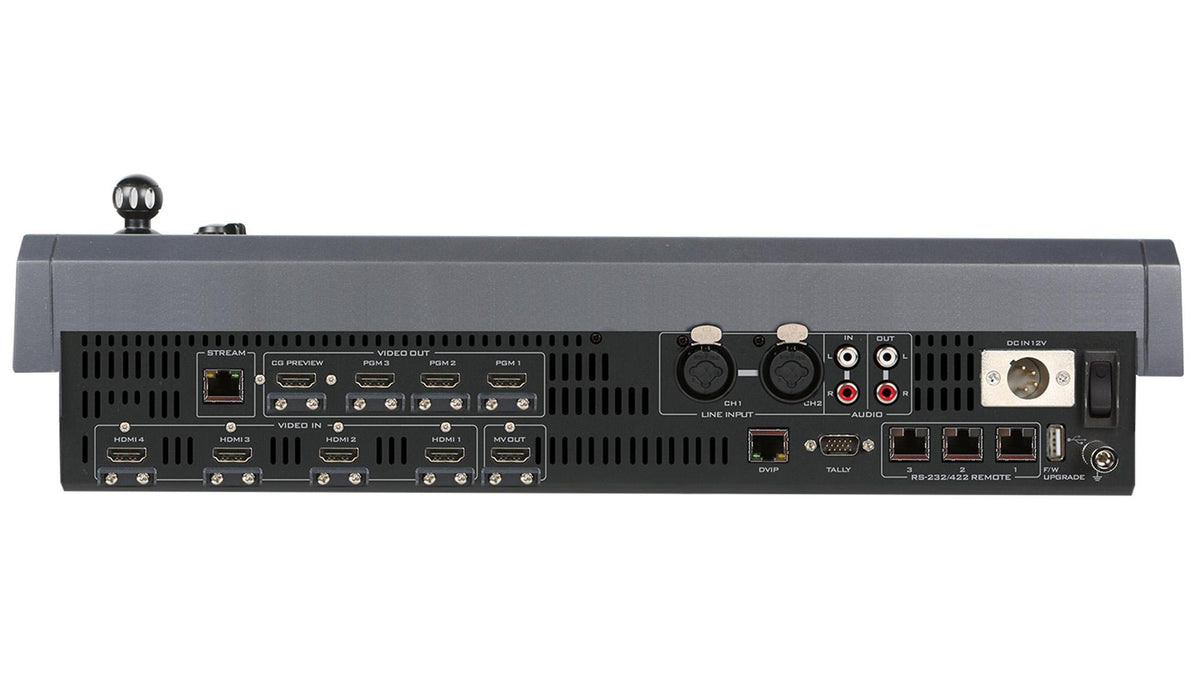

The Datavideo SHOWCAST 100 is a mobile video production studio from Datavideo, supplied in India by Universal AV Solutions. SHOWCAST 100 4K SHOWCAST Streaming Studio. 4K 4-channel touch panel switcher.
Key features
- 4K 4-channel touch panel switcher
- 7 major functions
- Video switching
- Text and graphics overlay (subtitles)
- Camera control for up to 3 PTZ cameras
- Live streaming and recording
- Audio mixing
- 14-inch touchscreen UI
- Auto tracking and custom AI object tracking
- 12 camera presets (4 per camera)
- Dual streaming, dvCloud, and SRT
- Vertical streaming
Technical specifications
- Model Number: SHOWCAST 100
- Video Standard: 4K & HD
- Video Format Input: 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x1200), WUXGA (1920 x 1200)
- Video Format Output: 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 720p: 60/59.94/50
- Video Processing 4K60: YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit
- Video Processing 4K30: YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit, RGB 4:4:4 8/10/12bit
- Video Processing HD: YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit
- Video Input: 4 x HDMI 2.0
- Computer Graphic Interface: 4 via HDMI
- Video Output: 3 x HDMI 2.0 for PGM; 1 x HDMI for CG Preview
- Down-converted Output: Yes
- Built-in Multi-view Monitoring Out: On 14" Touch Panel
- Analogue Audio Input: 2 x 3 Pin XLR / 1/4" (6.3mm) Combo Socket; 1 x Stereo RCA set (L/R); Audio Input Switch: Stereo / Mono
- Analogue Audio Output: 1 x Stereo RCA set (L/R); 1 x Stereo headphone (Mini Jack with volume control)
- Digital Embedded Audio Support: Input 2 channels, Output 2 channels
- Audio Delay Calibration: Up to 200ms
- A+V Switching: Yes
- Title Creator: Web GUI
- USK: Lumakey
- Picture in Picture: 1
- Effects: Seamless Cut, WIPE, Mix
- Sync / Reference In/Out: Built-in Genlock (internal)
- Tally Output: D-Sub-15 Male connector
- PC Remote Control: Web browser UI for configuration and control; Socket commands
- Camera Control: DVIP / RS-422 / RS-232
What's in the box (per official Datavideo page)
- 1 x Showcast 100 product
- 1 x AD Switch DC 12V with AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
